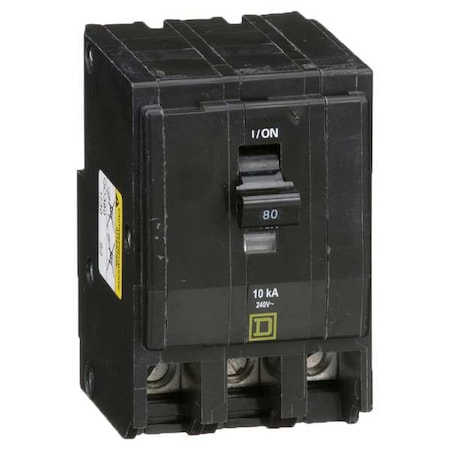

Miniature Circuit Breaker, QO Series, 80A, 3 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # QO380
Zoro # G0731577
CAD Available
product price: $170.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Series
QO
Number of Poles
3
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
3
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
QO380
Zoro #
G0731577
UPC #
785901004394
Country of Origin
Mexico
Dimensions
Frame Size
100A/QO
Width
2.24 in
Depth
2.91 in
Height
3-1/2 in
Max. Wire Size
2 AWG
Min. Wire Size
4 AWG
Length
3.5 in
Description
Miniature Circuit Breaker, Amps 80 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series QO, Phase Three, Series QO, Max. AIR Rating 10kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 3.5 in, Width 2.25 in, Depth 2.91 in, Min. Operating Temp. 77 Degrees F
