This item is Discontinued.

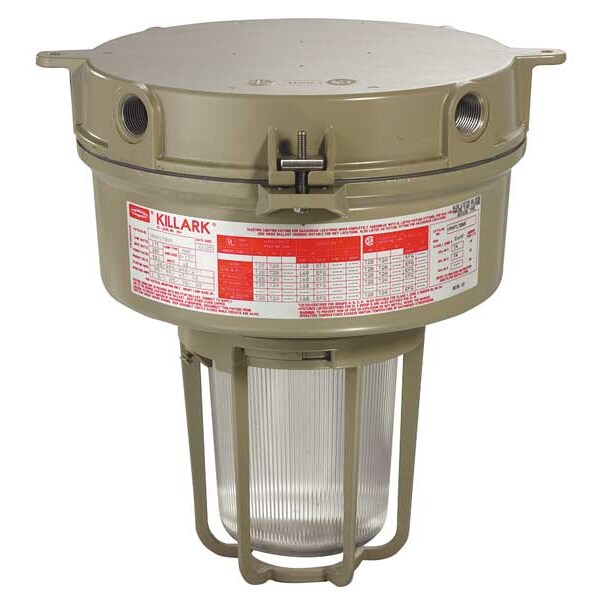

Killark MH Fixture, With 2PDE4 And 2PDG7 VM3P170X2GLG

MH Fixture, With 2PDE4 And 2PDG7 (Discontinued)

  • Mfr # VM3P170X2GLG
  • Zoro # G0662374
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
VM3P170X2GLG
Zoro #
G0662374
UPC #
094705486221
Country of Origin
Multiple

Dimensions

Length
13-9/16 in
Width
11-7/8 in
Height
5-3/8 in
Height (In.)
5-3/8
Width (In.)
11-7/8
Length (In.)
13-9/16
Nominal Length
13 9/16 in
Nominal Width
11 7/8 in
Nominal Height
5 3/8 in
Overall Height
5 3/8 in
Overall Length
13 5/8 in
Nominal Size - Fixtures
1 ft x 1 ft
Overall Width
11 7/8 in

Details

Item
Metal Halide Light Fixture
Standards
Class I, Div 2 Groups A, B, C, D, Class I, Zone 2, Groups IIC, IIB, IIA, Class II Div 1 and 2, Groups E, F, G, Class III, NEMA 3, 4, 4X
Lumens
17,500 lm
Lighting Technology
HID
Housing Material
Aluminum
Voltage
120/208/240/277V AC
Fixture Wattage
175
Lamp Type
Metal Halide
Description/Special Features
Suitable for Wet Locations
Lamp Watts
170 W
Mounting
Ceiling
Ambient Temp. Range
-40 Degrees to 149 Degrees F
Fixture Type
Hazardous Location
Lamp Included
No
Lamp Quantity
1
Housing Finish
Tan
Suggested Lamp Item No.
1E686
Bulb Designation
M137
Includes
Glass Globe, Mounting Splice Box
Dimmable
No
Ballast Quantity
1
Fixture Voltage
120/277/347/480V AC
Linkable Up To
Unlinkable
Series
VM3
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Fixture Ballast Type
Pulse Start
Emergency Battery Backup
No
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Pendant
IP Rating
66
Lamp Watts - Fixtures
175.0
Lamp Type - Fixtures
M137
Max. Fixture Wattage
170 W
For Number of Bulbs
1
CA Title 24 Compliant
No
Lumens per Watt
100 lm/W
Max. Ambient Temp.
149 Degrees F
Safety Rating
Class I, Division 2, Groups A, B, C, D, Class I, Groups IIC, IIB, IIA, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Divisions 1 and 2, Zone 2
For Bulb Type
Metal Halide
Ingress Protection Rating
66
For Max. Bulb Wattage
170 W
Min. Ambient Temp.
-40 Degrees F
Number of Ballasts
1
Temperature Code
T2A
Mounting Style
Pendant
Housing Color
Tan
Color Temperature
Lamp Dependent
Mounting Location
Ceiling, Pendant
Number of Bulbs
1
Warranty
2ACD2

Description

13 9/16 in, Lamp Dependent, 17,500 lm, 100 lm/W, Max. Fixture Wattage 170 W, Mounting Style Suspended, For Bulb Type Metal Halide, Dimmable No, VM3
