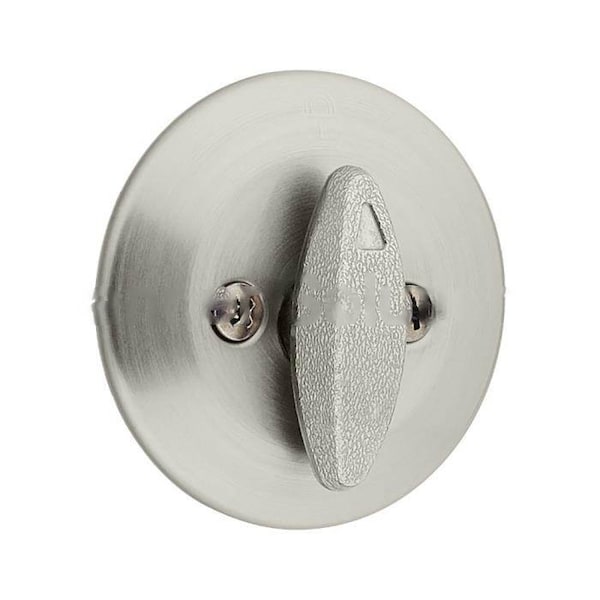

663 One-Sided Deadbolt

with Round Corner Latch and Round Corner Strike in Satin Nickel
660 DeadboltFeaturing SmartKeyKwiksets 660 Deadbolt offers effective security at an affordable price.Features:

• Easy to Install
• Featuring SmartKey Security - protecting againstadvanced break-in techniques
• Features Microban antimicrobial finish protection*
• ANSI/BHMA Grade 3 Certified Security & Quality
• *Microban available in the following finishes:Polished Brass 3, Antique Brass 5, Satin Nickel 15, Venetian Bronze 11p,and Iron Black 514

Specifications: Door Prep:

• Cross Bore 2-1/8
• Edge Bore 1
• Latch face 1 x 2 1/4

Backset:

• Adjustable to 2 3/8 or 2 3/4 standard

Door Thickness:

• 1 3/8 - 1 3/4 doors standard

Cylinder:

• SmartKey or 5-Pin Pin & Tumbler

Faceplates:

• 1 x 2 1/4
• Specify round corner, square corner or drive-in

Strikes:

• 1 x 2 1/4 full
• Specify round corner or square corner
• Other options available

Bolt:

• 1 throw

Door Handing:

• Reversible for right or left-hand doors

ANSI/BHMA:

• A156.2 Grade 3

ADA:

• Interior turn piece meets 4.13.9 ADA requirements

UL:

• N/A

Functions: 660 Single Cylinder:

• Deadbolt operated by key outside andthumb turn inside.

663 Thumb Turn Only:

• Deadbolt operated by thumb turn one side. No trim on exterior.

665 Double Cylinder:

• Deadbolt operated by key both sides

Finishes:

• *Polished Brass - 3
• *Antique Brass - 5
• *Venetian Bronze - 11P
• *Satin Nickel - 15
• Antique Nickel - 15A
• Polished Chrome - 26
• Satin Chrome - 26D
• *Microban
• Iron Black finish available in 660 only
