Balboa Lever Interior Single Cylinder Handleset Trim

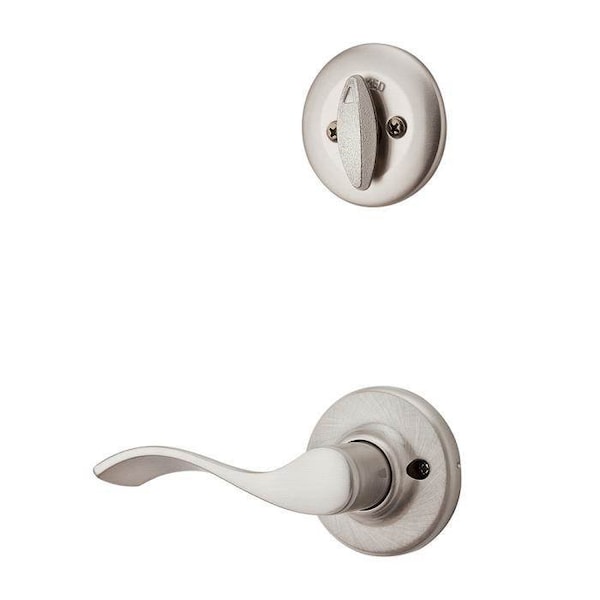

Balboa Lever Right Hand Interior Single Cylinder Handleset Trim in Satin Nickel
Balboa leverFeaturing SmartKeyThe Balboa levers wave style design is an attractive addition to any home.Features:

• Features SmartKey Re-Key Technologywith BumpGuard Protection
• ANSI/BHMA Grade 3 Certified Security & Quality

Specifications: Door Prep:

• Cross Bore 2 1/8
• Edge Bore 1

Backset:

• Adjustable to 2 3/8 or 2 3/4

Door Thickness:

• 1 3/8 1 3/4 standard, 2 1/4 doors optional on 200 and 405 functions only

Cylinder:

• SmartKey or traditional 5-Pin Pin & Tumbler

Faceplates:

• 1 x 2 1/4. Specify round corner, square corner or drive-in.

Strikes:

• 2 1/4 full lip standard. Specify round corner, square corner. Other options available.

Bolt:

• 1/2 throw.

Door Handing:

• Reversible for right or left-handed doors. Specify handing only on dummy and handleset interiors only.

ANSI/BHMA:

• A156.2 Grade 3 all functions except 488.

Finishes:

• Polished Brass - 3
• Antique Brass - 5
• Venetian Bronze - 11P
• Satin Nickel - 15
• Polished Chrome - 26
• Satin Chrome - 26D
