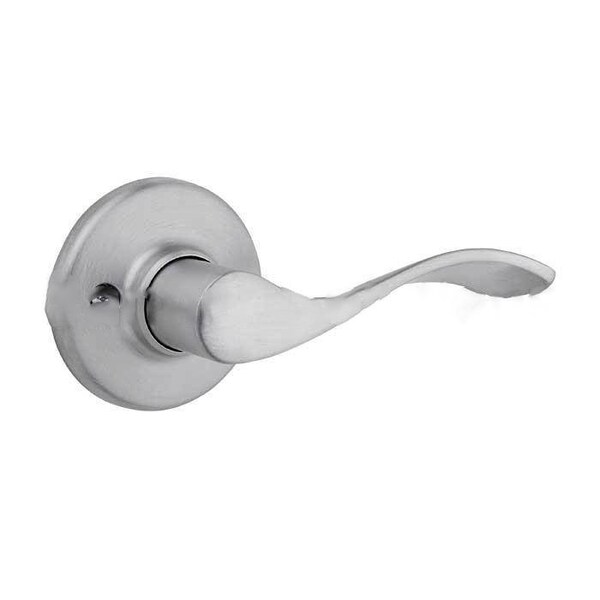

Balboa Passage Lever

with 6AL Latch and Round Corner Strike in Satin Chrome
Balboa leverFeaturing SmartKeyThe Balboa levers wave style design is an attractive addition to any home.Features:

• Features SmartKey Re-Key Technologywith BumpGuard Protection
• ANSI/BHMA Grade 3 Certified Security & Quality

Specifications: Door Prep:

• Cross Bore 2 1/8
• Edge Bore 1

Backset:

• Adjustable to 2 3/8 or 2 3/4

Door Thickness:

• 1 3/8 1 3/4 standard, 2 1/4 doors optional on 200 and 405 functions only

Cylinder:

• SmartKey or traditional 5-Pin Pin & Tumbler

Faceplates:

• 1 x 2 1/4. Specify round corner, square corner or drive-in.

Strikes:

• 2 1/4 full lip standard. Specify round corner, square corner. Other options available.

Bolt:

• 1/2 throw.

Door Handing:

• Reversible for right or left-handed doors. Specify handing only on dummy and handleset interiors only.

ANSI/BHMA:

• A156.2 Grade 3 all functions except 488.

Functions: 200 Passage/Hall/Closet:

• Both levers always free.

300 Privacy/Bed/Bath:

• Both levers locked or unlocked by turnbutton inside. Outside lever unlocked by emergency key.

405 Keyed Entry:

• Both levers locked or unlocked by key outside or turnbutton inside.

488 Half Dummy Trim, Surface Mounted:

• For doors where only a pull is required.Must specify right or left hand.
• Balboa also available as handleset interior style

Finishes:

• Polished Brass - 3
• Antique Brass - 5
• Venetian Bronze - 11P
• Satin Nickel - 15
• Polished Chrome - 26
• Satin Chrome - 26D
