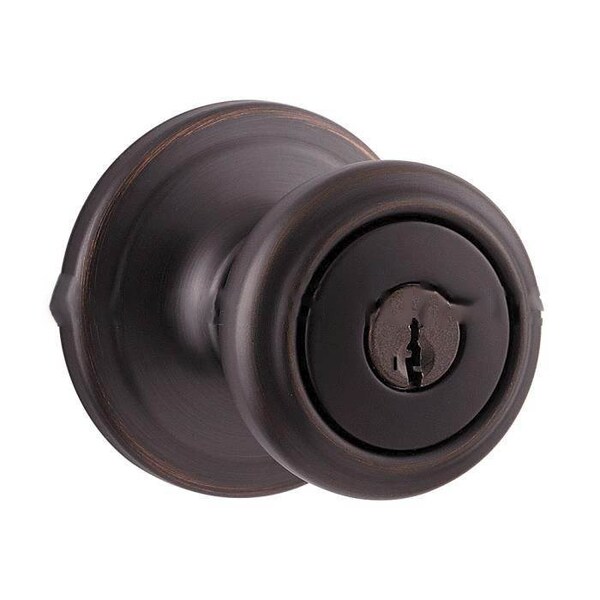

Cameron Keyed Entry Knob

SmartKey with 6AL Latch and Round Corner Strike in Venetian Bronze
Cameron KnobsKwikset Signature SeriesGreat hardware can transform the look of your home. With a variety of styles, functions and finishes, Kwikset's knobs are sure to define your decor from the moment someone walks into your home.Specifications: Door Prep:

• Cross Bore 2-1/8
• Edge Bore 1

Backset:

• Adjustable to 2-3/8 or 2-3/4
• 5 available as service part

Door Thickness:

• 1-3/8 1-3/4 doors standard
• 2-1/4 doors optional on 200 and 400 models only

Cylinder:

• SmartKey Security or Pin & Tumbler

Faceplate:

• 1 x 2-1/4
• Specify round corner, square corner or drive-in
• Also available as drive-in latch

Strikes:

• 2-1/4 full lip
• Specify round corner or square corner.
• Other options available

Bolt:

• 1/2 throw

Door Handing:

• Reversible for right or left hand doors

ANSI/BHMA:

• Grade 3 Certified
• all functions except 488

ADA:

• N/A

UL:

• Optional UL 1/3 hour fire rating for all functions

Functions: Passage/Hall/Closet:

• Both knobs always free.

Privacy/Bed/Bath:

• Both knobs locked or unlocked by turnbutton inside. Outside knob unlocked by emergency key.

Keyed Entry:

• Both sides locked or unlocked by key outside or turnbutton inside.

Half Dummy Trim, Surface Mounted:

• For doors where only a pull is required. No operation.

Finishes:

• Polished Brass
• Satin Chrome
• Venetian Bronze

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
