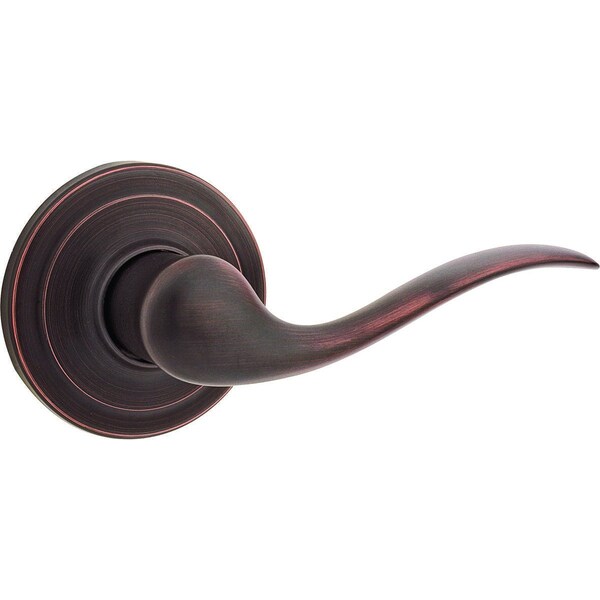

Tustin Passage Lever

with RCAL Latch and Round Corner Strike in Venetian Bronze
Tustin LeverKwikset Signature SeriesTustins fashionable wave silhouette is the perfect complement to homes with inspired style.Features:

• Reversible Lever Fits Both Left and Right Handed Doors
• Concealed Screws
• Elegant Wave Styling and Decorative Rose
• ANSI BHMA Grade 2 Certified

Specifications: Door Prep:

• Cross Bore 2-1/8
• Edge bore 1

Backset:

• Adjustable 2-3/8 or 2-3/4
• UL functions 2-3/4 standard
• or 2-3/8 optional

Door Thickness:

• 1-3/8 - 1-3/4 Doors standard.
• 2-1/4 doors optional on 720 and 740 functions only.

Cylinder:

• SmartKey Security or Pin & Tumbler

Faceplates:

• 1 x 2-1/4 Specify round corner, square corner or drive-in.

Strikes:

• 2-1/4 Full lip.
• Specify round corner or square corner.
• Other options available.

Bolt:

• 1/2 Throw

Door Handing:

• Reversible for both Left and Right handed doors.
• Specify handing only with Inactive and Interior Pack levers.

ANSI/BHMA:

• Grade 2 Certified

ADA:

• Functions 720 and 788 satisfy section 4. 13. 9 ADA requirement.

UL:

• Meets UL 3 hour fire rating for 725, 735, 745, 746, 755
• Optional UL 1/3 hour fire rating for all functions.

Functions: Passage/Hall/Closet:

• Both levers always free

Privacy/Bed/Bath:

• Both levers locked or unlocked by turnbutton inside. Outside lever unlocked by emergency key.

Keyed Entry Lever:

• Both sides locked or unlocked by key outside or turnbutton inside

Half Dummy Trim, Surface Mounted:

• For doors where only a pull is required.
• No operation.

Finishes:

• Polished Brass - 3
• Antique Brass - 5
• Venetian Bronze - 11P
• Satin Nickel - 15
• Antique Nickel - 15A
• Polished Chrome - 26
• Satin Chrome - 26D
• Iron Black - 514
