- MFR #
- TWR15-GY
- Zoro #
- G5688375
- UPC #
- 78477392034
- Country of Origin
- Mexico

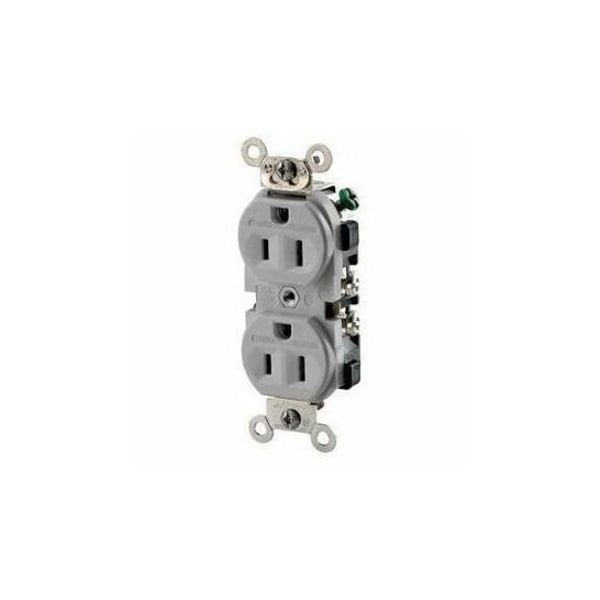

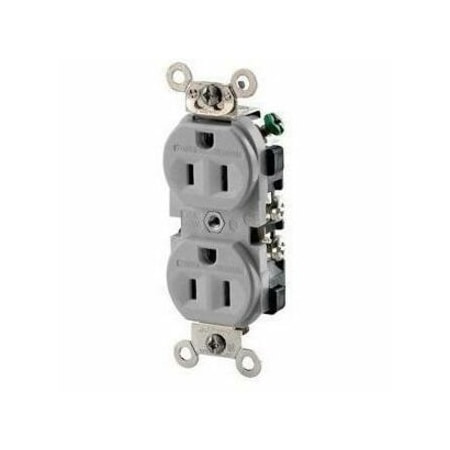

- Item
- Straight Blade Receptacle
- Receptacle Type
- Duplex
- NEMA Receptacle Configuration
- 5-15R
- Current Rating
- 15 A
- Voltage Rating
- 125V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Method
- Back, Side
- Grounding
- Self-Grounded
- Housing Color
- Gray
- Mount Type
- Flush
- IP Rating
- Not Rated
- Standards
- ANSI C73, CSA C22.2 No. 42, NOM 057, UL 498
- Resistance Properties
- Tamper Resistant, Weather Resistant
- Flange Type
- Non-Flanged
- Amps
- 15
- Material
- Nylon
- Sub-Category
- Duplex Receptacles
- Application Environment
- Commercial
- Weather Resistant - Plugs and Receptacles
- Yes
- Weather Resistant
- Yes
- Number of Gangs
- 1
- Wiring Method - Plugs and Receptacles
- Side
- Mounting Type
- Flush
- NEMA Configuration
- 5-15R
- Mounting Type - Plugs and Receptacles
- Flush
- Tamper Resistant
- Yes
- Outlet Type
- Duplex
- Surge Suppression
- No
- Color - Plugs and Receptacles
- Gray
- Outlet Type - Plugs and Receptacles
- Standard Duplex
- HP
- 0.5
- Mounting Screws
- Stainless Steel
- Feature 4
- Smooth Face
- At Rated Voltage
- 1/2 HP
- CSA C22.2 No. 42
- File 152105
- Face Material
- Nylon
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Clamp Nuts
- Zinc-Plated Steel
- Grade
- Heavy-Duty Industrial Specification Grade
- Terminal Screws
- Nickel-Plated Brass 10-32
- Terminal Accom.
- 14-10 AWG
- Device Type
- Duplex Receptacle Outlet
- Operating Temperature
- -40°C to 60°C
- Pole
- 2
- Line Contacts
- Nickel-Plated Brass Triple-Wipe .040 Thick
- Wire
- 3
- Flammability
- Rated V-2 per UL 94
- UL 498
- File E13399
- Ground Clips
- Nickel-Plated Brass
- Screw Terminal Torque
- 14-18 in-lbs
- Feature 2
- Weather and Tamper-Resistant
- ANSI
- C-73
- Strap Material
- Nickel Plated Brass
- Body Material
- Nylon
- Dielectric Voltage
- Withstands 2000V per UL498
- Current Limiting
- Full Rated Current
- Grounding Screw
- Nickel-Plated Brass
- Shutter Mechanism
- Delrin® Acetal
- Temperature Rise
- Max 30C after 100 cycles OL at 150 percent rated current
- Termination
- Back or Side Wire
- Standard
- NEMA (WD-2, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399)
- Connection
- Side Wired
- Terminal Type
- Side Wired
- Environmental Conditions
- Flammability (Rated V-2 per UL94)
- Mounting
- Wall Box
- Temperature Rating
- -40 to +60 °C
- Dielectric Strength
- 2000 (Min.) V
