This item is Discontinued.

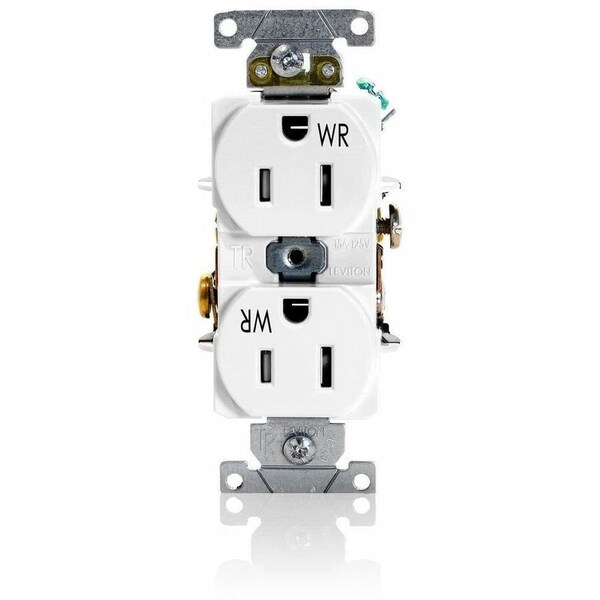

Leviton 15A Duplex Receptacle 125Vac 5-15R Wh TWR15-W

This item is Discontinued.

Leviton

15A Duplex Receptacle 125Vac 5-15R Wh (Discontinued)

Mfr # TWR15-W
Zoro # G3844584
UPC # 78477381847
Country of Origin Mexico
Category Straight Blade Receptacles
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TWR15-W
Zoro #
G3844584
UPC #
78477381847
Country of Origin
Mexico

Dimensions

Height
8.5000 in
Length
12.7500 in
Wire Size
14-10 AWG
Dimensions
46 in H x 1.53 in W x 1.11 in D

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NOM 057, UL 498, UL Federal Specification WC-596, cULus, cULus
Resistance Properties
Tamper Resistant, Weather Resistant
Flange Type
Non-Flanged
Application Environment
Commercial
HP
0.5
NEMA Configuration
5-15R
Outlet Type
Duplex
Surge Suppression
No
Amps
15
Weather Resistant
Yes
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
Yes
Mounting Type - Plugs and Receptacles
Flush
Material
Nylon
Color - Plugs and Receptacles
White
Tamper Resistant
Yes
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method - Plugs and Receptacles
Side
Mounting Type
Flush
Sub-Category
Duplex Receptacles
Certification/Listing
cULus, NOM-ANCE
Terminal Accom.
#14 AWG - #10 AWG
Wire
3
Screw Terminal Torque
14-18 in-lbs
Applicable Standards
UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
Line Contacts
0.030" Phosphor Bronze
Temperature Rise
Max 30 °C after 250 cycles OL at 200 percent rated current
Feature
Weather-Resistant|Smooth Face|Tamper-Resistant
Operating Temperature
-40°C to 75°C
Termination
Back or Side Wire
ANSI
C-73
Mounting Screws
Triple-Drive Plated Steel
Pole
2
Body Material
PBT Polyester Blend
Terminal Clamps
Brass
Grade
Heavy-Duty Industrial Specification Grade
Grounding Screw
#8 hex head, triple drive Brass
Wire Type
Stranded or Solid
Terminal ID
Brass - Hot, Green - Ground, Silver - Neutral
Flammability
Rated V-0 per UL 94
Horsepower Rating
1/2 HP
Terminal Screws
#8 Triple-Drive Brass
Ground Contacts
0.030" Brass
Device Type
Duplex Receptacle Outlet
Ground Clips
Brass
Dielectric Voltage
Withstands 3000 V minimum
Face Material
PBT Polyester Blend
Strap Material
Steel
Environmental Conditions
Flammability (Rated V-2 per UL94)
Connection
Side Wired
Temperature Rating
-40 to +60 °C
Mounting
Wall Box
Terminal Type
Side Wired
Standard
NEMA (WD-2, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399)
Dielectric Strength
2000 (Min.) V

Description

TO BE CHANGED - weather resistant receptacle, tamper resistant, duplex cof white, side wired, commercial spec grade, self g pkd 1/small box, 10/large box, 50/carton boxed.
