This item is Discontinued.

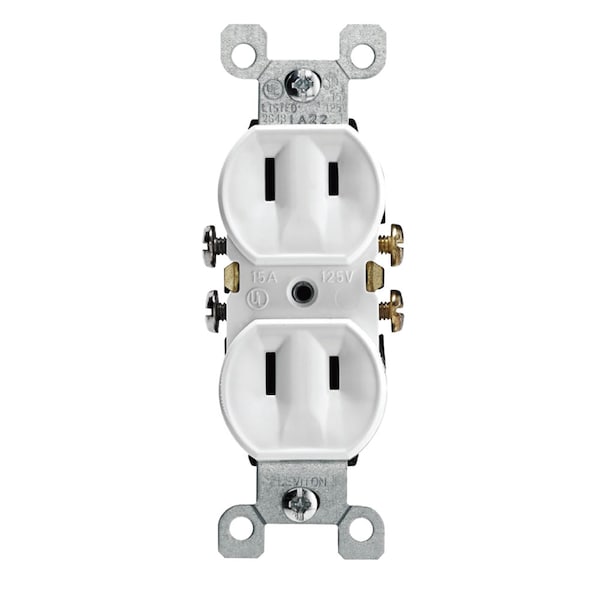

Leviton Electrical Receptacles Wcp Duplx Recpt 223-W

This item is Discontinued.

Leviton

Electrical Receptacles Wcp Duplx Recpt (Discontinued)

Mfr # 223-W
Zoro # G3836455
UPC # 78477793725
Country of Origin United States
Category Straight Blade Receptacles
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
223-W
Zoro #
G3836455
UPC #
78477793725
Country of Origin
United States

Dimensions

Height
10.8130 in
Length
19.0000 in
Dimensions
46 in H x 1.33 in W x 0.9 in D

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
1-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
2
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Non-Grounded
Housing Color
White
Mount Type
Surface
IP Rating
Not Rated
Standards
UL Listed
Flange Type
Non-Flanged
Application
Commercial
Standards and Certifications
UL
Pole
2
Body Material
Thermoplastic
Wire
2
Strap Material
Steel
Face Material
Thermoplastic
Termination
Side
Torque Range
14 - 18 in.-lbs
Environmental Conditions
Flammability (Rated V-2 per UL94)
Connection
Side Wired
Standard
NOM Certified (057);UL Listed 498;CO\ALR UL Listed (1561);CSA Certified (LR-406)
Terminal Type
Side Wired
Mounting
Wallplate
Temperature Rating
-40 to +60 °C
Grade
Commercial

Description

15 Amp, 125 Volt, Duplex Receptacle, Residential Grade, Non-Grounded, White
