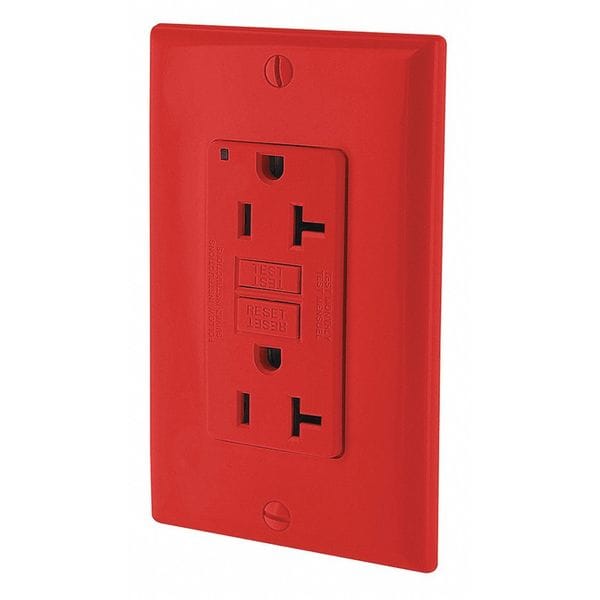

Leviton GFI Receptacle GFNT2-R - main

GFI Receptacle

  • Mfr # GFNT2-R

  • Zoro # G504392882

product price: $23.15
/ea

Key Features

Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNT2-R
Zoro #
G504392882
UPC #
07847771468
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
GFI Receptacle
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Red
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
Type
Standard Duplex
Weather Resistant - Plugs and Receptacles
No
Power Indicator
Yes
Tamper Resistant
No
Self-Testing
Yes
Surge Suppression
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Color - Plugs and Receptacles
Red
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Item - Plugs and Receptacles
GFCI Receptacle
Wiring Method
Back, Side
Outlet Type - Plugs and Receptacles
Standard Duplex
Voltage - Plugs and Receptacles
125V
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Commercial
Voltage
125 VAC
HP
1 hp
Color
Red
Amps - Plugs and Receptacles
20 A
Mounting Type - Plugs and Receptacles
Flush
Horsepower Rating
1 hp
Surge Protection
No
Voltage Rating
125V AC
Wire Connection Type
Screw Terminals
Contact Material
Brass
Maximum Operating Temperature
150.8 Degrees F
Market
Commercial, Residential
Mount Type
Flush
Receptacle Type
Decorator Duplex
Minimum Operating Temperature
-31 Degrees F
Hub Type
Feed Through
Visual Indicator Lights
Power Connected
Self Testing
Yes
Grade
Federal Specification
Includes Mounting Hardware
Yes
Includes
Faceplate, Wallplate
Grounding Screw
Plated Steel
CSA C22.2 No. 42
Yes
Short Circuit Current Rating
10KA
Amperage
20 A
Fed Spec WC-596
Yes
Terminal Accom.
14-10 AWG
Line Contacts
Brass Triple-Wipe .031 Thick
Clamps
Brass
Yoke
Zinc-Plated Steel
Pole
2
Trip Level
Class A, 5mA plus or minus 1mA
Standards and Certifications
UL/CSA, NEMA WD6
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Torque Range
14-18 in.-lbs
Operating Temperature
-35C to +66C
UL498
Yes
Termination
Back & Side
NEMA
5-20R
ANSI
C-73
At Rated Voltage
1 HP
Feature
Self-Test
Strap Material
Galvanized Steel
Body Material
Polycarbonate
UL 943
File E48380
Wallplate
Included
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
CSA-C22.2 No. 144.1-06
File LR-57811
Terminal Screws
Plated Steel
Wire
3
Face Material
Thermoplastic

Description

GFI Receptacle, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color Red, Housing Material Polycarbonate, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
