Shop All GFCI Receptacles
Leviton

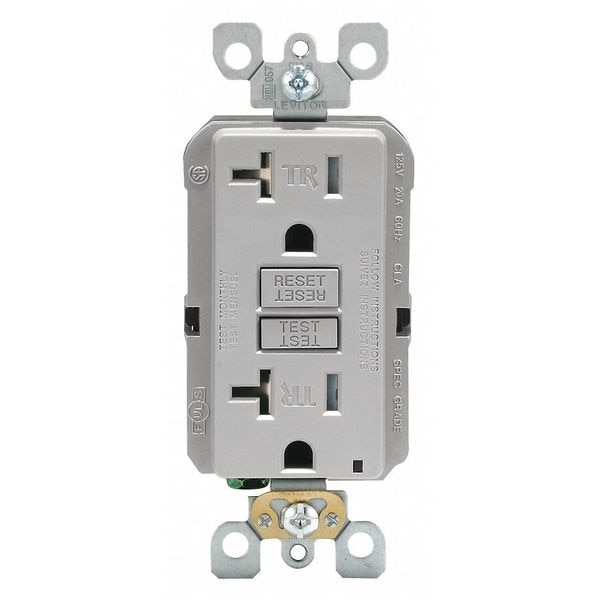

GFI Receptacle

product price: $22.99
/ea
Sold in multiples of 10 for $229.90
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Type - Plugs and Receptacles Flush
  • Color - Plugs and Receptacles Gray
  • Reset Type Automatic
  • Outlet Type - Plugs and Receptacles Standard Duplex
  • Special Features Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
See all product information

Product Information

Dimensions

Face Plate Width 1.3 in
Mount Hole Center-to-Center Height 3.3 in
Overall Depth 1 in
Minimum Wire Size 14 AWG
Face Plate Height 2.7 in
Maximum Wire Size 10 AWG

Details

Mounting Type - Plugs and Receptacles Flush
Color - Plugs and Receptacles Gray
Reset Type Automatic
Outlet Type - Plugs and Receptacles Standard Duplex
Special Features Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Self-Testing Yes
NEMA Receptacle Configuration - Plugs and Receptacles 5-20R
Standards ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed
Wiring Method Back, Side
Amps - Plugs and Receptacles 20 A
NEMA Configuration 5-20
Power Indicator Yes
Number of Poles 2
Wiring Method - Plugs and Receptacles Back and Side
HP 1 hp
Number of Wires 3
Surge Suppression Yes
Voltage - Plugs and Receptacles 125V
Application Environment Commercial
Item GFI Receptacle
Weather Resistant - Plugs and Receptacles No
Item - Plugs and Receptacles GFCI Receptacle
Tamper Resistant Yes
Visual Indicator Lights Power Connected
Hub Type Feed Through
UL 94 Flammability Rating V-2
Wire Connection Types Screw Terminals
Maximum Operating Temperature 150.8 Degrees F
Reverse Service Yes
Housing Material Polycarbonate
Market Commercial, Residential
Number of Poles & Wires 2 Pole / 3 Wire
Resistance Properties Tamper Resistant
Key Resistance Properties Tamper Resistant
Grade Federal Specification
NEMA Receptacle Configuration 5-20R
Current Rating 20 A
Connection Orientation Straight
Horsepower Rating 1 hp
Number of Outlets 2
Mount Type Flush
Housing Color Gray
Cover Type No Cover
Wire Connection Type Screw Terminals
Contact Material Brass
Surge Protection No
Phase Single
Includes Faceplate, Screws, Self Grounding Clip, Wallplate
Grounding Grounded
Minimum Operating Temperature -31 Degrees F
Polarized Yes
Self Testing Yes
Additional Electrical Protection GFCI, Surge Protection
Receptacle Type Decorator Duplex
Includes Mounting Hardware Yes
Primary Resistance Properties Tamper Resistant - Tamper Resistant - 20 A
Voltage Rating 125V AC
GFCI Yes

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color Gray, Housing Material Polycarbonate, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant, Standards ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed, Voltage Rating 125V AC
