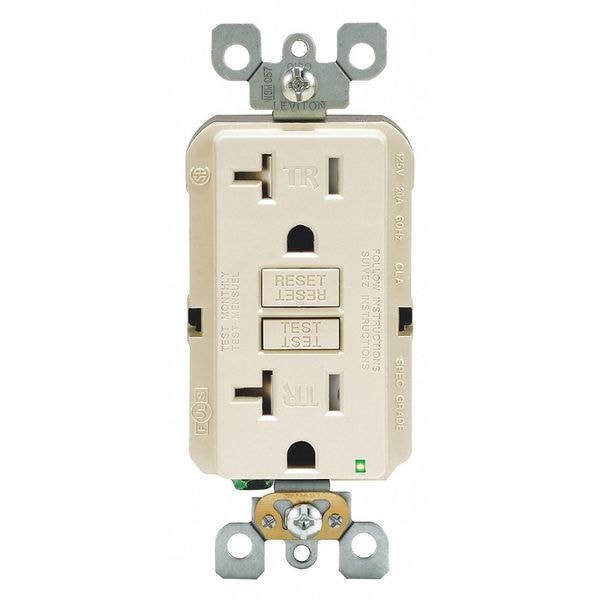

Leviton GFI Receptacle GFTR2-T - main

GFI Receptacle

  • Mfr # GFTR2-T

  • Zoro # G704392934

product price: $22.85
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR2-T
Zoro #
G704392934
UPC #
07847749733
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Number of Outlets
2
Housing Color
Light Almond
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
No
Standards
ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed
Voltage - Plugs and Receptacles
125V
Surge Suppression
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Tamper Resistant
Yes
Wiring Method
Back, Side
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Type
Standard Duplex
HP
1 hp
Color
Light Almond
Power Indicator
Yes
Voltage
125 VAC
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Commercial
Weather Resistant - Plugs and Receptacles
No
Self-Testing
Yes
Mounting Type - Plugs and Receptacles
Flush
Amps - Plugs and Receptacles
20 A
Outlet Type - Plugs and Receptacles
Standard Duplex
Reset Type
Automatic
Color - Plugs and Receptacles
Light Almond
Item - Plugs and Receptacles
GFCI Receptacle
Surge Protection
No
UL 94 Flammability Rating
V-2
Wire Connection Type
Screw Terminals
Horsepower Rating
1 hp
Visual Indicator Lights
Power Connected
Receptacle Type
Decorator Duplex
Minimum Operating Temperature
-31 Degrees F
Contact Material
Brass
Includes Mounting Hardware
Yes
Self Testing
Yes
Hub Type
Feed Through
Resistance Properties
Tamper Resistant
Voltage Rating
125V AC
Includes
Faceplate, Screws, Self Grounding Clip, Wallplate
Reverse Service
Yes
Mount Type
Flush
Market
Commercial, Residential
Grade
Federal Specification
Maximum Operating Temperature
150.8 Degrees F
UL 943
File E48380
Amperage
20 A
Short Circuit Current Rating
10KA
Body Material
Polycarbonate
Wallplate
Included
Terminal Accom.
14-10 AWG
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Wire
3
Feature
Self-Test
Torque Range
14-18 in.-lbs
Yoke
Zinc-Plated Steel
Line Contacts
Brass Triple-Wipe
Termination
Back & Side
Trip Level
Class A, 5mA plus or minus 1mA
CSA-C22.2 No. 144.1-06
File LR-57811
Terminal Screws
Plated Steel
Flammability
Rated V-2 per UL 94
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Grounding Screw
Plated Steel
NEMA
5-20R
Standards and Certifications
UL/CSA, NEMA WD6
Face Material
Thermoplastic
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
At Rated Voltage
1 HP
Clamps
Brass
Pole
2
Strap Material
Galvanized Steel
CSA C22.2 No. 42
Yes
Fed Spec WC-596
Yes
ANSI
C-73
Operating Temperature
-35C to +66C
UL498
Yes

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color Light Almond, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
