This item is Discontinued.

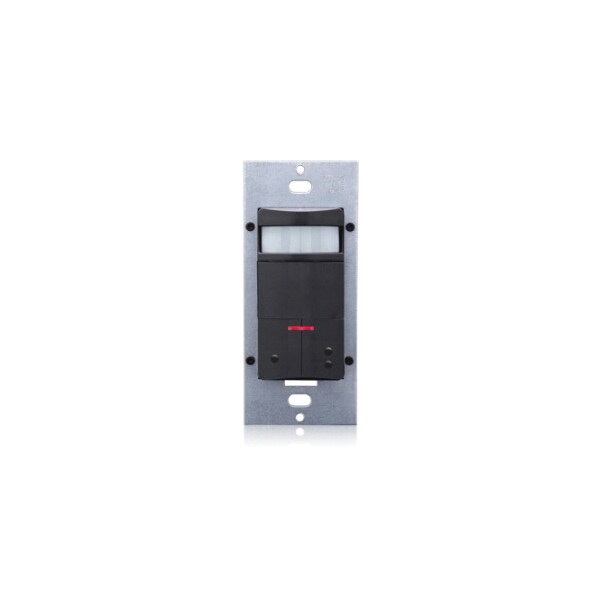

Leviton Lighting Controls Pir Occ Snsr 2P Nft Blk ODS0D-INE

This item is Discontinued.

Leviton

Lighting Controls Pir Occ Snsr 2P Nft Blk (Discontinued)

Mfr # ODS0D-INE
Zoro # G4208724
UPC # 78477486887
Country of Origin Mexico
Category Occupancy Sensors
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ODS0D-INE
Zoro #
G4208724
UPC #
78477486887
Country of Origin
Mexico

Dimensions

Height
4.62 in
Size
Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.83"(47mm), Install Depth 1.35"(34.4mm), Install Height 2.60"(66.2mm)
Width
1.88 in
Dimensions
46 in H x 1.75 in W x 1.83 in D
Length
2.88 in

Details

Item
Occupancy Sensor
Installation Location
Wall Mount
Sensor Operation
Occupancy
Color
Black
Operating Voltage
120/230/277V AC
Maximum Coverage Area
2,100 sq ft
Type
Occupancy Sensor;Single-Pole Switch;Dual Relay
Time Delay
30 sec to 30 min
Viewing Angle
180 °
Frequency
50/60Hz
Wiring
Primary Relay No. 16 AWG leads: Line-Black, Load-Blue, Ground-Green - Secondary Relay N0. 18 AWG isolated contact leads: (2) Red
Pattern
180°
USMCA Compliant
Yes
Switch Type
Single-Pole, Dual Relay
Relay Type
Dual Relay
Relative Humidity
20% to 90% non-condensing
Listings
cUL/US Certified, can be used to comply with Title 24, Part 6 occupancy sensing requirements, FCC Compliant
Storage Temperature Range
14° to 185°F (-10° to 85°C)
Grade
Commercial
Neutral Wire Connection
Not Required
Power Consumption
120V - 110mW, 277V - 270mW
Application
Classrooms, Multimedia Rooms, Daylight Harvesting, Conference Rooms, Day Care Centers, Offices, Lounges, Bi-Level or A/B Switching
Load Rating
Primary Relay Fluorescent: 1200VA @ 120V 2700VA @ 277V Incandescent: 800W @ 120V - Secondary Relay Fluorescent: 800VA @ 120V 1200VA @ 277V Incandescent: 800W @ 120V
Standard
cULus Listed;CEC Title 24 Compliant FCC Compliant;NAFTA (CF434)
Temperature Rating
0 to 50 °C
Response Frequency
50/60 Hz
Lamp Type
Fluorescent/Incandescent
Environmental Conditions
Operating Temperature (0 to +50 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing)
Power Rating
110/270 mW
Control Output
Manual On/Automatic Off
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
122 Degrees F
Sensing Technology
Passive Infrared

Description

Leviton Passive Infrared Wallbox Occupancy Sensor, Dual Relay, Both Photocell Controlled, Low Profile, 180 Degree Field of View, 120 or 277 Volt, Black
