This item is Discontinued.

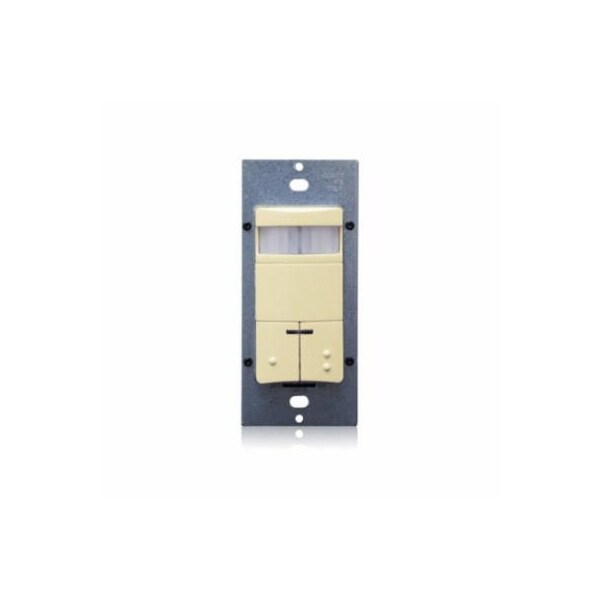

Leviton Lighting Controls Pir Occsnsr 2P Usa Ivry ODS0D-IAI

Lighting Controls Pir Occsnsr 2P Usa Ivry (Discontinued)

  • Mfr # ODS0D-IAI
  • Zoro # G4210018
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ODS0D-IAI
Zoro #
G4210018
UPC #
78477508688
Country of Origin
United States

Dimensions

Height
4.62 in
Width
1.88 in
Size
Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.83"(47mm), Install Depth 1.35"(34.4mm), Install Height 2.60"(66.2mm)
Dimensions
46 in H x 1.75 in W x 1.83 in D
Length
2.88 in

Details

Mounting
Wall Switch
Mounting Type
Wall Switch
Type
Occupancy Sensor;Single-Pole Switch;Dual Relay
Color
Ivory
Coverage
2100 ft
Voltage
120/230/277 VAC
Time Delay
30s-30m
Sensor Type
Occupancy
Viewing Angle
180 °
Relay Type
Dual Relay
USMCA Compliant
Yes
Relative Humidity
20% to 90% non-condensing
Pattern
180°
Power Consumption
120V - 110mW, 277V - 270mW
Grade
Commercial
Application
Classrooms, Multimedia Rooms, Daylight Harvesting, Conference Rooms, Day Care Centers, Offices, Lounges, Bi-Level or A/B Switching
Load Rating
Primary Relay Fluorescent: 1200VA @ 120V 2700VA @ 277V Incandescent: 800W @ 120V - Secondary Relay Fluorescent: 800VA @ 120V 1200VA @ 277V Incandescent: 800W @ 120V
Switch Type
Single-Pole, Dual Relay
Wiring
Primary Relay No. 16 AWG leads: Line-Black, Load-Blue, Ground-Green - Secondary Relay N0. 18 AWG isolated contact leads: (2) Red
Listings
cUL/US Certified, can be used to comply with Title 24, Part 6 occupancy sensing requirements, FCC Compliant
Storage Temperature Range
14° to 185°F (-10° to 85°C)
Neutral Wire Connection
Not Required
Frequency
50/60Hz
Operating Temperature
32° to 122°F (0° to 50°C)
Product Type
Occupancy Sensor
Coverage (Sq.Ft.)
2100
Sensor Technology
Passive Infrared (PIR)
Temperature Rating
0 to 50 °C
Power Rating
110/270 mW
Frequency Rating
50/60 Hz
Response Frequency
50/60 Hz
Lamp Type
Fluorescent
Standard
cULus Listed;CEC Title 24 Compliant FCC Compliant;NAFTA (CF434)
Environmental Conditions
Operating Temperature (0 to +50 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing)

Description

Leviton Passive Infrared Wallbox Occupancy Sensor, Dual Relay, Both Photcell Controled, 180 Degree Field of View, Time Delay 30 Sec- 30 Min, Ivory
