This item is Discontinued.

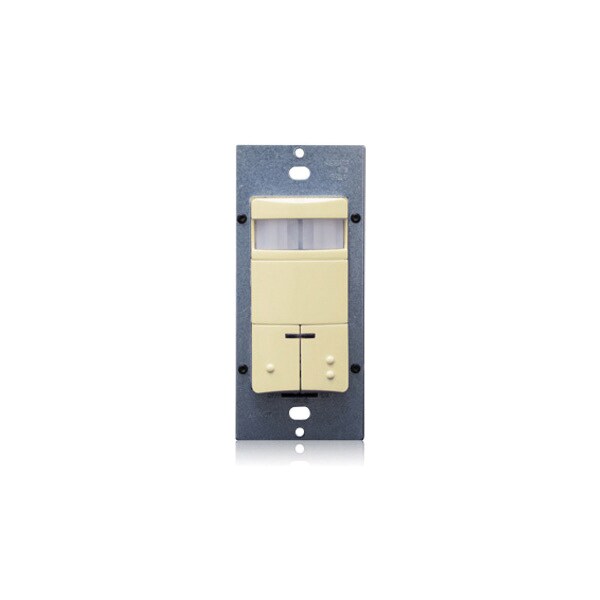

Leviton Occupancy Sensor, Pir, 2100 Sq Ft, Ivory ODS0D-IDI

This item is Discontinued.

Leviton

Occupancy Sensor, Pir, 2100 Sq Ft, Ivory (Discontinued)

Mfr # ODS0D-IDI
Zoro # G3845905
UPC # 78477954096
Country of Origin Mexico
Category Occupancy Sensors
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ODS0D-IDI
Zoro #
G3845905
UPC #
78477954096
Country of Origin
Mexico

Dimensions

Length
2.88 in
Height
4.62 in
Width
1.88 in
Size
Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.83"(47mm), Install Depth 1.35"(34.4mm), Install Height 2.60"(66.2mm)
Dimensions
46 in H x 1.75 in W x 1.83 in D

Details

Item
Occupancy Sensor
Installation Location
Wall Mount
Lighting Technology
Fluorescent, Incandescent
Sensing Technology
Passive Infrared
Sensor Operation
Occupancy
Color
Ivory
Operating Voltage
120/277V AC
Maximum Coverage Area
2,100 sq ft
Standards
UL and cUL Listed, CA Title 24 compliant
Switch Type
Single-Pole, Dual Relay
Max. Capacity @ 120VAC
500W (Fluorescent, Incandescent)
Time Delay
30 sec to 30 min
Type
Occupancy Sensor;Single-Pole Switch;Dual Relay
Grade
Commercial
Description/Special Features
Dual Relay
Max. Capacity @ 277VAC
1200W (Fluorescent, Incandescent)
Coverage Angle - Motion Sensor
180 Degrees
Includes
Photocell
Watts @ 120V
(2) 800
Viewing Angle
180 Degrees
For Use With
Fluorescent and Incandescent Lighting Loads
Watts @ 277V
(2) 1200
Frequency
50/60Hz
Listings
cUL/US Certified, can be used to comply with Title 24, Part 6 occupancy sensing requirements, FCC Compliant
Relay Type
Dual Relay
Relative Humidity
20% to 90% non-condensing
Application
Classrooms, Multimedia Rooms, Daylight Harvesting, Conference Rooms, Day Care Centers, Offices, Lounges, Bi-Level or A/B Switching
Technology
Passive Infrared
Storage Temperature Range
14° to 185°F (-10° to 85°C)
Neutral Wire Connection
Not Required
Pattern
180°
Wiring
Primary Relay No. 16 AWG leads: Line-Black, Load-Blue, Ground-Green - Secondary Relay N0. 18 AWG isolated contact leads: (2) Red
Load Rating
Primary Relay Fluorescent: 1200VA @ 120V 2700VA @ 277V Incandescent: 800W @ 120V - Secondary Relay Fluorescent: 800VA @ 120V 1200VA @ 277V Incandescent: 800W @ 120V
Power Consumption
120V - 110mW, 277V - 270mW
Control Output
Manual On/Automatic Off
Lamp Type
Fluorescent/Incandescent
Temperature Rating
0 to 50 °C
Power Rating
110/270 mW
Response Frequency
50/60 Hz
Environmental Conditions
Operating Temperature (0 to +50 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing)
Standard
cULus Listed;CEC Title 24 Compliant FCC Compliant
Supply Voltage
120/230/277 VAC
Time Delay Adjustment Method
Adaptive
Maximum Operating Temperature
122 Degrees F
Minimum Operating Temperature
32 Degrees F

Description

Dual-Relay, Decora Passive Infrared Wall Switch Occupancy Sensor, 180 Degree, 2100 sq. ft. Coverage, Ivory
