This item is Discontinued.

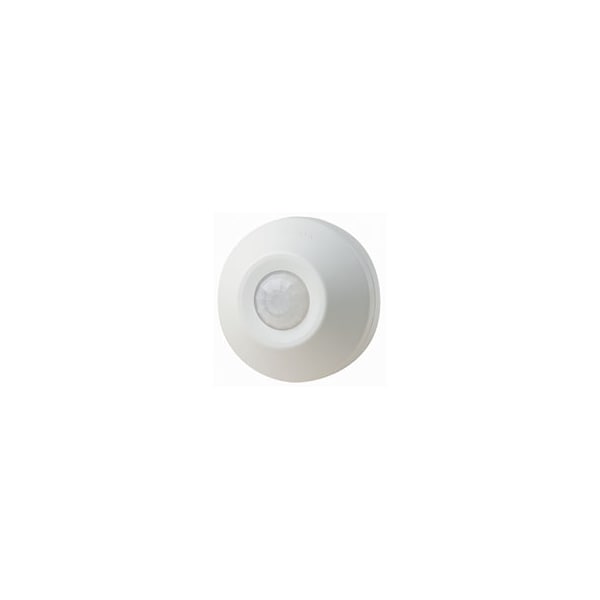

Leviton Occupant Sensor Meiling Pir Snsr 277V ODC0S-I7W

This item is Discontinued.

Leviton

Occupant Sensor Meiling Pir Snsr 277V (Discontinued)

Mfr # ODC0S-I7W
Zoro # G6277994
UPC # 78477881873
Country of Origin China
Category Occupancy Sensors
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ODC0S-I7W
Zoro #
G6277994
UPC #
78477881873
Country of Origin
China

Dimensions

Height
4.62 in
Width
3.12 in
Size
Width 4.3" (109.2mm), Height above surface 2.15" (54.6mm)
Dimensions
4.3 in Dia x 2.15 in H
Length
4.50 in

Details

Item
Occupancy Sensor
Installation Location
Ceiling Mount
Sensor Operation
Occupancy
Color
White
Operating Voltage
277V AC
Maximum Coverage Area
530 sq ft
Type
Passive Infrared
Time Delay
20 sec to 15 min
Viewing Angle
360 °
Pattern
360°
Power Consumption
1.89 Watts
Application
Storage Areas, Copy Rooms, Small Bathrooms, Utility Closets, Retrofit, Small Spaces without wall switches
Neutral Wire Connection
Required
Load Rating
Incandescent: 1000 Watts, Fluorescent: 2700 VA
Storage Temperature Range
14° to 185°F (-10° to 85°C)
Frequency
60Hz
Wiring
Line - black, Neutral - white, Load - blue
Relative Humidity
20% to 90% non-condensing
Listings
UL Listed and CSA Certified, can be used to comply with Title 24, Part 6 occupancy sensing requirements, complies with FCC regulations
Grade
Commercial
Response Frequency
60 Hz
Standard
UL Listed;CSA Certified;Complies with CEC Title 24, Complies with FCC Regulations
Control Output
Automatic On/Automatic Off
Environmental Conditions
Storage Temperature (-10 DEG C to +85 DEG C);Relative Humidity (20 to 90 PCT)
Power Rating
1.89 W
Temperature Rating
0 to +50 °C
Lamp Type
Fluorescent/Incandescent
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
122 Degrees F
Sensing Technology
Passive Infrared

Description

Ceiling Mount Self-Contained Occupancy Sensor, 2700VA FL, 277VAC 60Hz, PIR, 360 Degree, 530 sq. ft. Coverage, White
