This item is Discontinued.

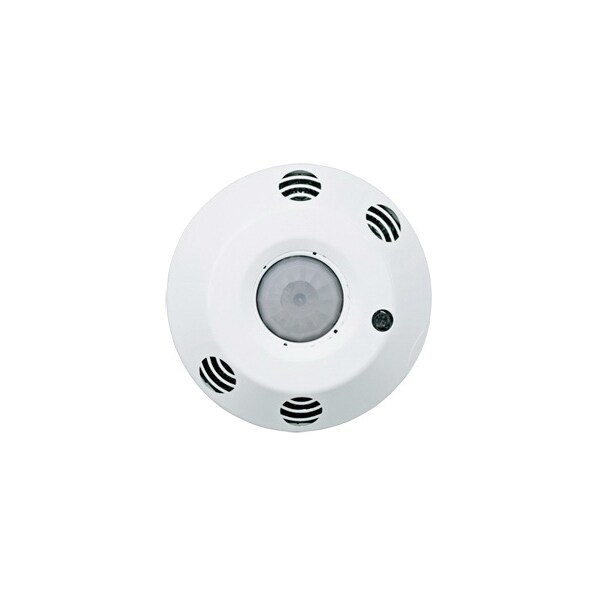

Leviton Occupant Sensor Mt Vac Sens Slng Mnt 1000 Sq Ft O3C10-MDW

This item is Discontinued.

Leviton

Occupant Sensor Mt Vac Sens Slng Mnt 1000 Sq Ft (Discontinued)

Mfr # O3C10-MDW
Zoro # G6276454
UPC # 78477642689
Country of Origin China
Category Vacancy Sensors
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
O3C10-MDW
Zoro #
G6276454
UPC #
78477642689
Country of Origin
China

Dimensions

Width
4.38 in
Height
7.75 in
Size
Width 4.80" (121.92mm), Depth 2.39" (60.71mm)
Length
5.75 in

Details

Mounting
Ceiling Mount
Color
White
Current Consumption
60-30mA
Time Delay
30s-30m
Voltage
120/230/277 VAC
Type
Vacancy Sensor
Load Rating
120V, 50/60Hz: 8A, Electronic Ballast, 800W/VA, Tungsten, Ballast, 1/4 HP Motor - 230V, 50Hz: 6A/6AX, Electronic Ballast, Magnetic Ballast, 1/3 HP Motor - 277V, 50/60Hz: 5A, Electronic Ballast, 1200VA, 1/3 HP Motor
Listings
Can be used to comply with Title 24, Part 6 vacancy sensing requirements, UL 773A (Occupancy Standard), UL 924 (Emergency Equipment), cUL listed, CE compliant, NOM certified, RoHS compliant, NY LLC48 compliant
Relative Humidity
0% to 90% non-condensing
Sensor Type
Vacancy, Photocell
Sensor Technology
Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
Feature
Multi-Technology Line Voltage
Operating Temperature
32° to 104°F (0° to 40°C)
Storage Temperature Range
-15° to 160°F (-26° to 71°C)
Pattern
360°
Application
Code Compliance|Manual ON/Auto OFF
Neutral Wire Connection
Required
Frequency
50/60Hz
Coverage (Sq.Ft.)
1000
Grade
Commercial
Product Type
Vacancy Sensor and Photocell
Sensing Distance
1000 Sq. Ft.
Coolant Thru
No
Standard
cUL Lsted

Description

Line Voltage Ceiling Mount Vacancy Sensor. Multi-Technology PIR/Ultrasonic. 1000 Sq. Ft. Coverage
