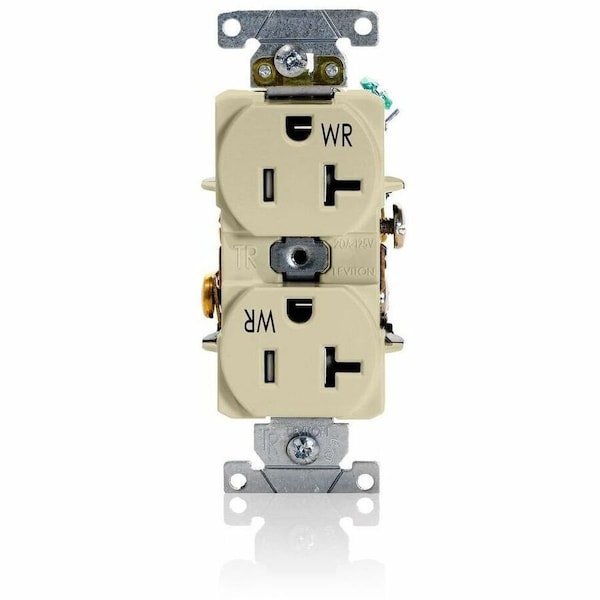

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded TWR20-I

This item is Discontinued.

Leviton

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded (Discontinued)

Mfr # TWR20-I
Zoro # G4062223
UPC # 78477679838
Country of Origin Mexico
Category Straight Blade Receptacles
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
TWR20-I
Zoro #
G4062223
UPC #
78477679838
Country of Origin
Mexico
Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-2 WD-6, NOM 057, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant, Weather Resistant
Flange Type
Non-Flanged
Grounding Screw
Nickel-Plated Brass
Grade
Heavy-Duty Industrial Specification Grade
Mounting Screws
Stainless Steel
CSA C22.2 No. 42
File 152105
Device Type
Duplex Receptacle Outlet
Terminal Screws
Nickel-Plated Brass 10-32
Clamp Nuts
Zinc-Plated Steel
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
At Rated Voltage
1 HP
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Current Limiting
Full Rated Current
Termination
Back or Side Wire
Feature
Weather and Tamper-Resistant|Smooth Face
Screw Terminal Torque
14-18 in-lbs
Body Material
Nylon
UL 498
File E13399
Terminal Accom.
14-10 AWG
ANSI
C-73
Ground Clips
Nickel-Plated Brass
Face Material
Nylon
Dielectric Voltage
Withstands 2000V per UL498
Strap Material
Nickel Plated Brass
Line Contacts
Nickel-Plated Brass Triple-Wipe .040 Thick
Shutter Mechanism
Delrin® Acetal
NEMA Rating
NEMA 5-20R
Terminal Type
Back/Side Wired
Application
Commerical
Temperature Rating
-40 to 75 °C

Description

Nema 5-20R 20A-125V. 2-Pole 3-Wire. Weather Resistant Receptacle. Tamper Resistant. Duplex. Back And Sided Wired. Commercial Spec Grade. Self Grounding Triple-combination-head Screws. - Ivory
