This item is Discontinued.

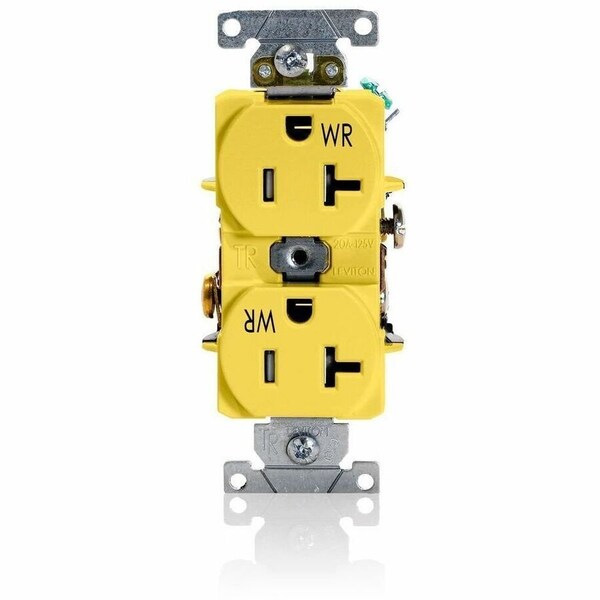

Leviton Wall Fixture 20A-125V T&Wr Comm Rcpt TWR20-Y

This item is Discontinued.

Leviton

Wall Fixture 20A-125V T&Wr Comm Rcpt (Discontinued)

Mfr # TWR20-Y
Zoro # G4065398
UPC # 78477392041
Country of Origin Mexico
Category Straight Blade Receptacles
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TWR20-Y
Zoro #
G4065398
UPC #
78477392041
Country of Origin
Mexico

Dimensions

Height
8.5000 in
Length
12.7500 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Yellow
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-2 WD-6, NOM 057, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant, Weather Resistant
Flange Type
Non-Flanged
Material
Nylon (Body)
NEMA Rating
NEMA 5-20R
Dielectric Voltage
Withstands 2000V per UL498
Current Limiting
Full Rated Current
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
CSA C22.2 No. 42
File 152105
Grade
Heavy-Duty Industrial Specification Grade
Feature
Weather and Tamper-Resistant|Smooth Face
Shutter Mechanism
Delrin® Acetal
At Rated Voltage
1 HP
UL 498
File E13399
Terminal Screws
Nickel-Plated Brass 10-32
Terminal Accom.
14-10 AWG
Face Material
Nylon
Line Contacts
Nickel-Plated Brass Triple-Wipe .040 Thick
Clamp Nuts
Zinc-Plated Steel
Termination
Back or Side Wire
Body Material
Nylon
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Screw Terminal Torque
14-18 in-lbs
Strap Material
Nickel Plated Brass
Mounting Screws
Stainless Steel
Ground Clips
Nickel-Plated Brass
Grounding Screw
Nickel-Plated Brass
ANSI
C-73
Device Type
Duplex Receptacle Outlet
Application
Commercial
Standard
NEMA (WD 1, WD 6);ANSI C 73;UL943 Class A (E48380);UL498HG (E13399);CSA C22.2 No 42 (LR-57811);NOM (057);Flammability (Rated V-2 per UL94)
Terminal Type
Back/Side Wired
Temperature Rating
-40 to 75 °C
Enclosure
NEMA WD-1/WD-6

Description

TO BE CHANGED - weather resistant receptacle, tamper resistant, duplex cof yellow. back and sided wired. commerical spec grad triple-combination-head screws.
