  5. Ballast Housing, HPS, 400W, 5-Tap, Mogul

This item is Discontinued.

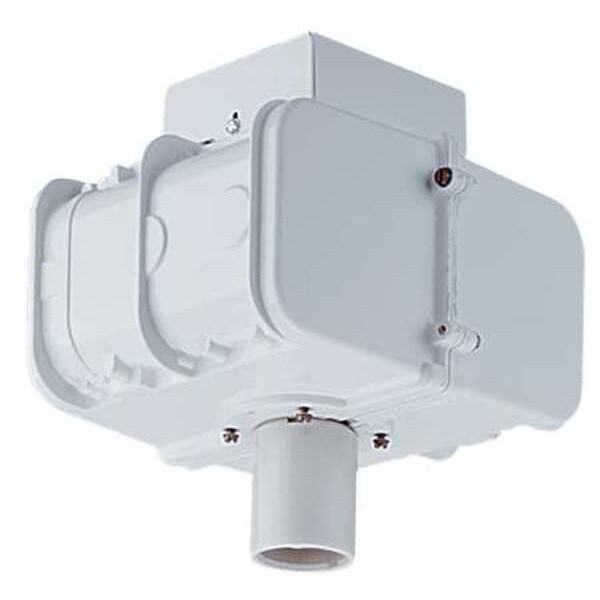

Lithonia Lighting Ballast Housing, HPS, 400W, 5-Tap, Mogul TX 400S TBV HSG

Ballast Housing, HPS, 400W, 5-Tap, Mogul (Discontinued)

  • Mfr # TX 400S TBV HSG
  • Zoro # G1547472
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TX 400S TBV HSG
Zoro #
G1547472
UPC #
784231014424
Country of Origin
Unknown

Dimensions

Height
19 5/8 in
Width
16 3/4 in

Details

Item
HID Ballast Housing
Type
Low Bay Ballast Housings Standard
Lamp Type
HPS
Lamp Watts
400 W
Fixture Wattage
400 W
Voltage
120 to 480
Socket Type
Mogul
Ballast Housing
Cast Aluminum
Standards
NOM Certified, Certified to U.S. and Canadian Safety Standards, UL Listed
Series
TX
Lamp Included
No
Description/Special Features
For Areas That Require High Vertical Illumination and Wide Spacing, Ideal For Aisles
Match Code
J
Suggested Lamp Item No.
3APT6
Mounting Type
Pendant Splice Box
Housing Finish
White Polyester Powder Paint
Ambient Temp. Range
-22 Degrees to 131 Degrees F
Use With
3GU54 / 3GU55 / 3GU56 / 5YB77 / 3GA48 / PA22C U
For Use With
Enclosed Low Bay Opticals
Min. Ambient Temp.
-22 Degrees F
Housing Material
Aluminum
Max. Ambient Temp.
131 Degrees F
Number of Pieces
1
Ballast Start Type
Pulse Start
For Min. Bulb Voltage
120 V
For Min. Bulb Wattage
175 W
For Max. Bulb Voltage
480 V
For Bulb Type
High Pressure Sodium
For Max. Bulb Wattage
400 W
For Bulb Base Type
Mogul
Accessory Type
HID Ballast Housing

Description

HID Ballast Housing, Ballast Start Type Pulse Start, Fixture Wattage 400 W, For Bulb Type High Pressure Sodium, 480 V, For Max. Bulb Wattage 400 W, 120 V, For Min. Bulb Wattage 175 W, Series TX, For Bulb Base Type Mogul, For Use With Enclosed Low Bay Opticals, Height 19 5/8 in, Width 16 3/4 in, Max. Ambient Temp. 131 Degrees F, Min. Ambient Temp. -22 Degrees F, Mounting Type Integral Splice Box, Number of Pieces 1, Socket Type Mogul
