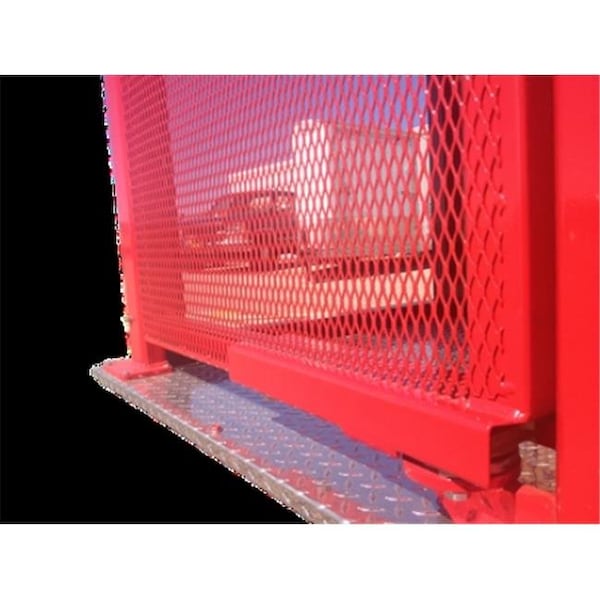

TB-950 Magnum Magnum Heavy Duty Hinge And Hydraulic Closer

This Magnum Heavy Gate Closer-Hinge is an excellent solution to gate security. Manufactured into the gate, it will successfully close the gate every time. This Commercial / Industrial grade closer is a concealed, heavy-duty hydraulic gate-closing system designed to act as both the gate closer and hinge. Ideal for man-gates and other heavy gate systems, the TB950 Magnum is perfect for schools, airports, oil fields and other applications where effective perimeter security is necessary. With speed adjustments for both closing and latching speed, the TB950 provides consistent closing pressure, ensuring gates close smoothly and steadily. Additionally, the gate closer/hinge is 180-degree capable (swing-in/out) when equipped with a 180-Plate

Suitable for gates up to four-feet wide and 240 pounds in weight, the TB950 has no ‘pinch-points’ and can be installed on both right and left-handed gates. The TB950 Magnum is tested to one-million cycles and can operate in temperatures as low as negative 40 degrees Fahrenheit.

• Self-closing.
• Acts as hinge (comes with additional pivot hinge).
• Two speed adjustments for Closing &Latching Speeds.
• Can be mounted on either top or bottom of gate.
• 180 degree capable with additional plate (not included).
• For right or left-handed gates.

• Gate Width - approx. 4 ft.
• Max Gate Weight - 240 lbs.
• Max Opening Angle - 90 degrees.
• Min Operating Temperature -40 F.
