This item is Discontinued.

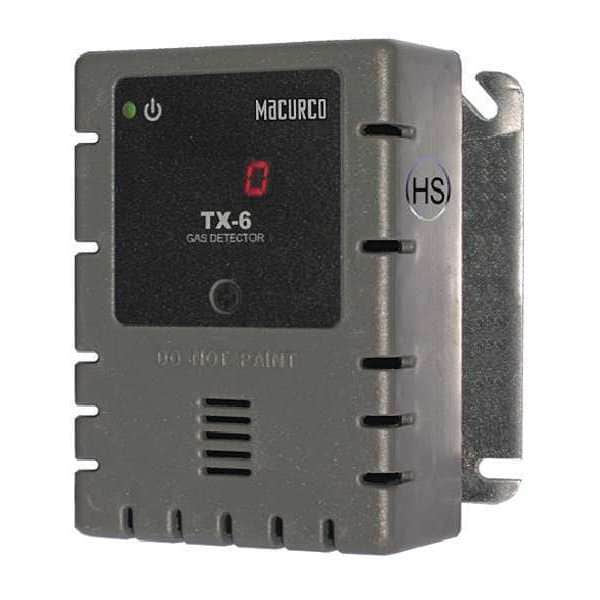

Macurco Detector/Controller, H2S, Electrochemical TX-6-HS

This item is Discontinued.

Macurco

Detector/Controller, H2S, Electrochemical (Discontinued)

Mfr # TX-6-HS
Zoro # G9476616
Country of Origin United States
Category Gas Detection Accessories
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
TX-6-HS
Zoro #
G9476616
UPC #
-
Country of Origin
United States
Item
Detector/Controller
For Use With
Macurco Control Panel
Color
Gray
Standards
cETLus
Includes
Manual
Operating Temp. Range
0 Degrees to 125 Degrees F (-18 Degrees to 52 Degrees C)
Alarm Type
Audible and Visual
Features
0.5 A NO/NC Alarm Relay, Selectable Fan and Alarm Relay Actuation Settings
Gas Type
H2S
Resolution
1 ppm
Connection
Plugs/Terminals
Power Required
12 to 24V AC or 12 to 32V DC
Display
LED
Sensor Range
0 to 50 ppm
Number of Channels
2
Status Indicator
LED
Interchangeable Sensors
Yes
Housing Color
Gray
Power Source
Hardwired
Input Current
23 mA @ 24V DC (Standby), 50 mA @ 24V DC (Fan Relay), 75 mA @ 24V DC (Alarm)
Display Screen Type
LED
Mount Type
Bolts/Screws
Display Type
Digital
Number of Relays
2
Measurement Range
Hydrogen Sulfide (0 to 50 ppm)
Sensor Life
2 yr
Number of Gases Detected
1
Market
Commercial
Sub-Brand
Macurco
IP Rating
Not Rated
NEMA Enclosure Rating
Not Rated
For Environment
Hazardous Locations
Input Channels
2
Visual Alert Type
Green LED
Chemical Formula
H2S
Number of Digits
3
Operating Temperature - Maximum
122 Degrees F
Series
Commercial
Coverage Area
900 sq ft
Output Current
4 to 20 mA
Gas Detected
Hydrogen Sulfide
Sensor Type
Electrochemical
Alert Type
Internal Buzzer
Output Type
SPDT Relay
Alarm Setting Adjustment
Adjustable Alarm Setting
Operating Humidity - Minimum
10 %
Ties Into
Building Automation Panels, Fire Alarm Panels
Operating Temperature - Minimum
-4 Degrees F
Operating Humidity - Maximum
90 %
Voltage
12 to 24V AC, 12 to 32V DC
Operating Voltage
12 to 24V AC, 12 to 32V DC
Product Type
Stand-Alone Detector & Controller
Output Current - Maximum
20 mA
Output Current - Minimum
4 mA
Power Source - TS Only
Hardwired
Power Source - old
Hardwired

Description

Fixed Gas Detector and Controller, For Use With Macurco Control Panel, Gas Detected Hydrogen Sulfide, Standards cETLus Certified, Includes Manual, Product Type Stand-Alone Detector & Controller, Mounting Location Wall, Number of Relays 2, Sensor Type Electrochemical, Visual Alert Type Green LED, Display Type Digital, Operating Temperature - Minimum -4 Degrees F, Operating Temperature - Maximum 122 Degrees F, Number of Gases Detected 1, Coverage Area 900 sq ft, Interchangeable Sensors Yes
