Shop MACURCO

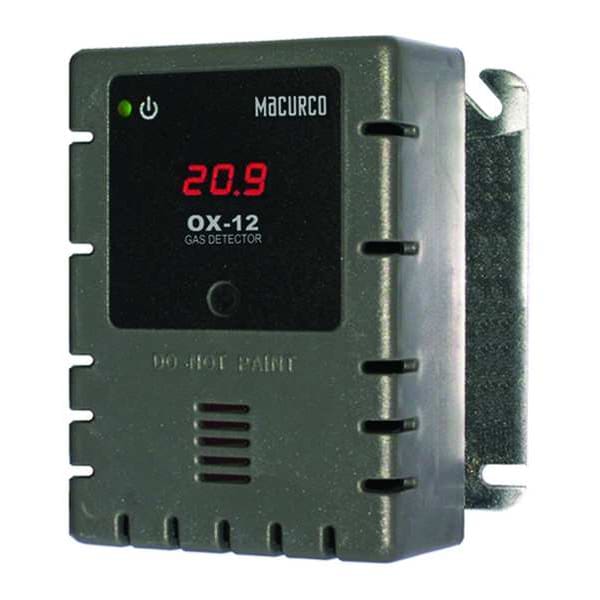

Detector/Controller, O2, Electrochemical

  • Mfr # OX-12

  • Zoro # G0461581

product price:
$
631.99
/ea
Free Shipping & Returns

Key Features

For Use With
DVP-120
Gas Detected
Oxygen
Chemical Formula
O2
Sensor Range
0 to 25% v/v
Operating Temp. Range
0 Degrees to 125 Degrees F (-18 Degrees to 52 Degrees C)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
OX-12
Zoro #
G0461581
UPC #
783748834303
Country of Origin
United States
Item
Detector/Controller
For Use With
DVP-120
Gas Detected
Oxygen
Chemical Formula
O2
Sensor Range
0 to 25% v/v
Operating Temp. Range
0 Degrees to 125 Degrees F (-18 Degrees to 52 Degrees C)
Resolution
0.1% vol
Features
Selectable Fan and Alarm Relay Actuation Settings
Gas Type
O2
Includes
Manual
Number of Channels
2
Connection
Plugs/Terminals
Power Required
100 to 240V AC (50 to 60 Hz)
Alarm Type
Audible and Visual
Color
Gray
Status Indicator
LED
Standards
cETLus
Display
LED
IP Rating
Not Rated
Product Type
Stand-Alone Detector & Controller
Mount Type
Bolts/Screws
Operating Humidity - Maximum
90 %
Output Type
SPDT Relay
Series
Commercial
Housing Color
Gray
Operating Frequency
50/60 Hz
Output Channels
2
Market
Commercial
Display Screen Type
LED
Sensor Type
Electrochemical
Input Current
1.0 A
Alarm Setting Adjustment
Adjustable Alarm Setting
NEMA Enclosure Rating
Not Rated
Operating Humidity - Minimum
10 %
Output Current
4 to 20 mA
Number of Digits
3
Measurement Range
Oxygen (0 to 25% vol)
Power Source
Hardwired
Interchangeable Sensors
Yes
Display Type
Digital
Operating Temperature - Maximum
122 Degrees F
Number of Relays
2
Number of Gases Detected
1
Ties Into
Building Automation Panels, Fire Alarm Panels
Alert Type
Internal Buzzer
Sub-Brand
Macurco
Visual Alert Type
Green LED
Coverage Area
900 sq ft
Sensor Life
2 yr
Operating Temperature - Minimum
-4 Degrees F
Operating Voltage
100 to 240V AC
Voltage
100 to 240V AC
Output Current - Minimum
4 mA
Output Current - Maximum
20 mA
Compatible Manufacturer Part Number
DVP-120
Power Source - TS Only
Hardwired
Power Source - old
Hardwired

Description

Detector/Controller, For Use With DVP-120, Gas Detected Oxygen, Standards cETLus, Product Type Stand-Alone Detector & Controller, Mounting Location Wall, Number of Relays 2, Sensor Type Electrochemical, Visual Alert Type Green LED, Display Type Digital, Operating Temperature - Minimum -4 Degrees F, Operating Temperature - Maximum 122 Degrees F, Number of Gases Detected 1, Coverage Area 900 sq ft, Interchangeable Sensors Yes, NEMA Enclosure Rating Not Rated, IP Rating Not Rated
