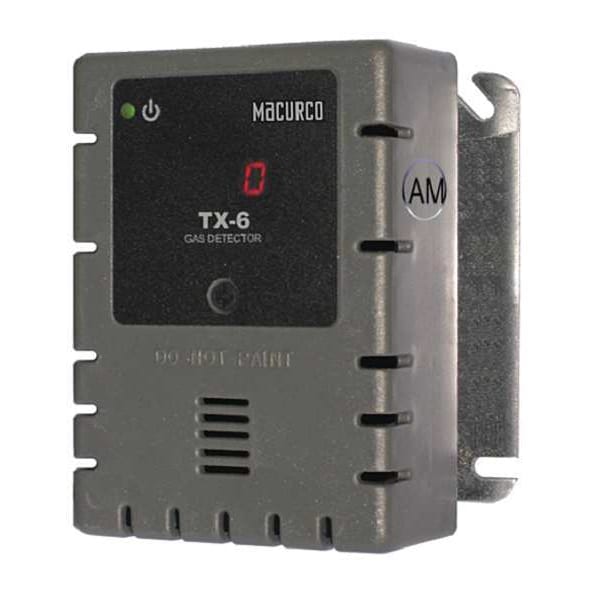

Macurco Detector/Controller, NH3, Electrochemical TX-6-AM

This item is Discontinued.

Macurco

Detector/Controller, NH3, Electrochemical (Discontinued)

Mfr # TX-6-AM
Zoro # G9476607
Country of Origin United States
Category Gas Detection Accessories
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TX-6-AM
Zoro #
G9476607
UPC #
-
Country of Origin
United States

Dimensions

Depth
2 1/8 in
Height
4 1/2 in
Width
4 in
Overall Height
4.5 in
Overall Width
2.12 in
Overall Depth
4 in
Manufacturer Warranty Length
2 yr
Fits Chest Size
0.5 A NO/NC Alarm Relay, Selectable Fan and Alarm Relay Actuation Settings

Details

Item
Detector/Controller
For Use With
Macurco Control Panel
Color
Gray
Status Indicator
LED
Alarm Type
Audible and Visual
Number of Channels
2
Resolution
1 ppm
Standards
cETLus
Includes
Manual
Sensor Range
0 to 100 ppm
Power Required
12 to 24V AC or 12 to 32V DC
Display
LED
Gas Type
NH3
Connection
Plugs/Terminals
Features
0.5 A NO/NC Alarm Relay, Selectable Fan and Alarm Relay Actuation Settings
Operating Temp. Range
0 Degrees to 125 Degrees F (-18 Degrees to 52 Degrees C)
Interchangeable Sensors
Yes
Housing Color
Gray
Measurement Range
Ammonia (0 to 100 ppm)
Coverage Area
900 sq ft
Operating Humidity - Maximum
90 %
Operating Temperature - Minimum
-4 Degrees F
Input Channels
2
Power Source
Hardwired
Output Current
4 to 20 mA
Sub-Brand
Macurco
Output Type
SPDT Relay
Display Type
Digital
Series
Commercial
Visual Alert Type
Green LED
Alert Type
Internal Buzzer
Ties Into
Building Automation Panels, Fire Alarm Panels
Gas Detected
Ammonia
Chemical Formula
NH3
Market
Commercial
Number of Gases Detected
1
Number of Relays
2
Sensor Life
2 yr
Mount Type
Bolts/Screws
For Environment
Hazardous Locations
Number of Digits
3
IP Rating
Not Rated
NEMA Enclosure Rating
Not Rated
Sensor Type
Electrochemical
Operating Humidity - Minimum
10 %
Alarm Setting Adjustment
Adjustable Alarm Setting
Display Screen Type
LED
Input Current
23 mA @ 24V DC (Standby), 50 mA @ 24V DC (Fan Relay), 75 mA @ 24V DC (Alarm)
Operating Temperature - Maximum
122 Degrees F
Voltage
12 to 24V AC, 12 to 32V DC
Operating Voltage
12 to 24V AC, 12 to 32V DC
Product Type
Stand-Alone Detector & Controller
Output Current - Minimum
4 mA
Output Current - Maximum
20 mA
Power Source - TS Only
Hardwired
Power Source - old
Hardwired

Description

Detector/Controller, For Use With Macurco Control Panel, Gas Detected Ammonia, Standards cETLus, Product Type Stand-Alone Detector & Controller, Mounting Location Wall, Number of Relays 2, Sensor Type Electrochemical, Visual Alert Type Green LED, Display Type Digital, Operating Temperature - Minimum -4 Degrees F, Operating Temperature - Maximum 122 Degrees F, Number of Gases Detected 1, Coverage Area 900 sq ft, Interchangeable Sensors Yes, NEMA Enclosure Rating Not Rated, IP Rating Not Rated
