Shop All Routers
Makita

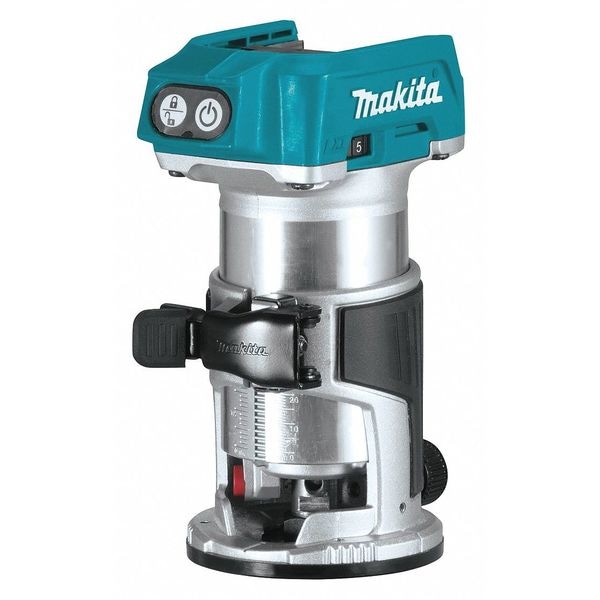

18V LXT® Compact Brushless Router

product price: $199.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Voltage 18 V
  • Tool Weight 4.6 lb
  • Max. Power 800 W
  • Base Size 3 1/2 in
See all product information

Product Information

  • Brand Makita
  • MFR # XTR01Z
  • Zoro # G2765067
  • UPC #
    088381844420
  • Country of Origin China
  • Category Routers

Dimensions

Base Size 3 1/2 in
Overall Width 3 1/2 in
Overall Depth 5 1/4 in
Overall Height 5 1/4 in
Overall Length 5 1/4 in
Base Diameter 3 1/2 in
Shank Diameter 1/4 in
Base Width 3 1/2 in
Collet Size 1/4 in

Details

Promotion Restriction Not eligible for promotion
Item Cordless Compact Router
Voltage 18 V
Tool Weight 4.6 lb
Max. Power 800 W
Battery Capacity 2.0 Ah, 3.0 Ah, 4.0 Ah, 5.0 Ah
Number of Batteries 0
No Load RPM 0 to 1,000/0 to 30,000
Brushless Motor Yes
Cordless Tool Battery Type Li-Ion
Corded/Cordless Cordless
Includes 1/4 in Collet (763637-1), 3/8 in Collet (763619-3), Spanner Wrench (781011-1), Spanner Wrench (781039-9), Straight Guide (122965-7), Template Guide (343577-5)
Series 18V LXT
Switch Push Button
Battery Included No
Features 3-Year Limited Warranty, Accepts Industry Standard Template Guides, Easy-To-Read Depth Scales, Electronic Speed Control, High Visibility Base Design for Improved Handling and Performance, Lxt(R) Technology Delivers 380 Feet of Cutting Performance in Red Oak Using a 1/4 in (6 mm) Straight Bit At a 5/32 in (4 mm) Depth With a 5.0 Ah Battery (Battery Not Included), Non-Marring High-Durability Base Insert for Increased Work Piece Protection, On/Off Button With Separate Lock Button Helps Prevent Accidental Start-Up of the Tool for User and Workpiece Protection, Plunge Capacity of 0 to 1 3/8 in With Plunge Base Attached and 0 to 1 9/16 in With Trimmer Base Attached (Bases Sold Separately), Quick Release Cam Lock System for Convenient Depth Adjustments and Base Removal/Installation, Shaft Lock for Quick and Easy Bit Changes, Slim and Ergonomically Designed Body With Rubberized Grip for Increased Comfort and Control, Smooth Rack-And-Pinion Fine Depth Adjustment System for More Precise Settings, Soft Start Feature for Smoother Start-Ups and Better Accuracy, Variable Speed Control Dial, Weighs only 4.6 Lbs. With Battery (Battery Not Included) for Reduced Operator Fatigue
Speed Type Variable
Lock Lock/Unlock
Power Source Cordless
Included Charger No
Motor Type Brushless
Minimum Speed 10,000 RPM
Battery Platform 18V LXT
Base Type Fixed
Handle Type Palm Grip
Horsepower Not Rated
Housing Material Aluminum
Number of LED Lights 2
Start Type Soft-Start
Number of Speed Settings 5
Maximum Speed 30,000 RPM
Speed Setting Variable
Number of Batteries Included 0
Cordless Tool Kit Contents Bare Tool
Router Class Compact

Description

Cordless Compact Router, Power Source Cordless, Battery Platform 18V LXT, Number of Batteries Included 0, Cordless Tool Kit Contents Bare Tool, Base Type Fixed, Router Class Compact, Horsepower Not Rated, Maximum Speed 30,000 RPM, Speed Setting Variable, Number of Speed Settings 5, Collet Size 1/4 in, Motor Type Brushless, Battery Included / Bare Tool Bare Tool, Voltage 18 V, Start Type Soft-Start, Handle Type Palm Grip, Tool Weight 4.6 lb, Base Diameter 3 1/2 in, Base Width 3 1/2 in
