This item is Discontinued.

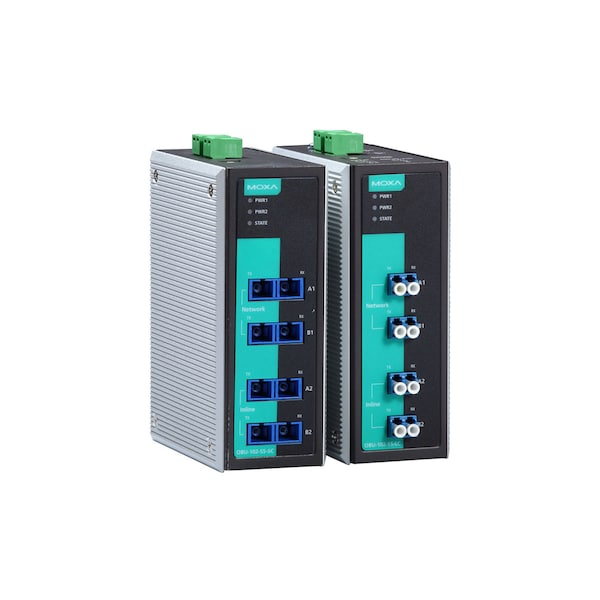

Moxa 2-Channel Optical Fiber Bypass Unit W/ 4 Single-ModePorts, Lc OBU-102-SS-LC

This item is Discontinued.

Moxa

2-Channel Optical Fiber Bypass Unit W/ 4 Single-ModePorts, Lc (Discontinued)

Mfr # OBU-102-SS-LC
Zoro # G4395075
Country of Origin Taiwan, Province of China
Category Media Converters & Data Adapter Kits
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
OBU-102-SS-LC
Zoro #
G4395075
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Dimensions
53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

Details

EMI
FCC Part 15 Subpart B Class A, EN 55022 Class A
Shock
IEC 60068-2-27
Input Voltage
12/24/48 VDC redundant dual inputs
Overload Current Protection
1100 mA @ 48 VDC
Storage temperature
-40 to 85°C (-40 to 185°F)
Freefall
IEC 60068-2-32
Safety
UL 508
Rotary Switch
configure boot delay interval
Vibration
IEC 60068-2-6
Housing
Metal, IP30 protection
Reverse Polarity Protection
Present
Insertion Loss
Max. 1.6 dB
EMS
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3; EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3; EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11
Operating temperature
-20 to 70°C (-4 to 158°F)
Connection
2 removable 2-contact terminal block
LED Indicators
PWR1, PWR2, STATE
Installation
DIN-rail mounting, wall mounting (with optional kit)
Optical Switching Time
Max. 10 ms
Fiber Ports
100M/1G/10G fiber in SC/ST/LC connector, single mode
Ambient Relative Humidity
5 to 95% (non-condensing)

Description

2-channel optical fiber bypass unit with 4 single-mode ports, LC, -20 to 70°C operating temperature
