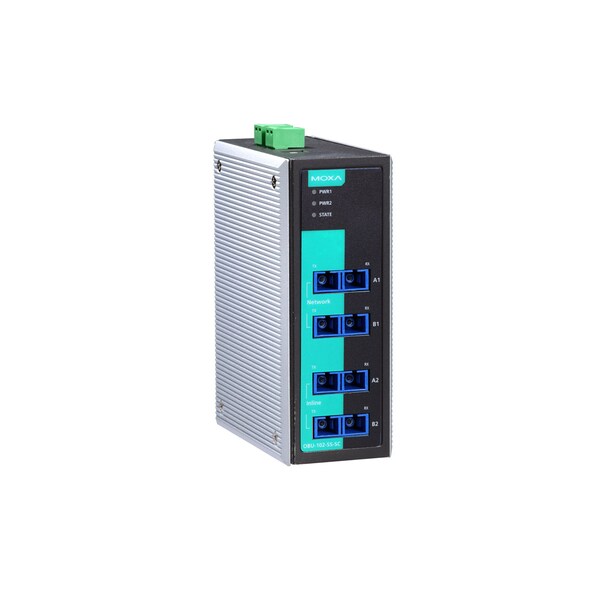

2-Channel Optical Fiber Bypass Unit W/ 4 Single-ModePorts, Sc (Discontinued)
Mfr #
OBU-102-SS-SC
Zoro #
G4397470
Country of Origin Taiwan, Province of China
Category Media Converters & Data Adapter Kits
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- OBU-102-SS-SC
- Zoro #
- G4397470
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Dimensions
- 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Details
- Reverse Polarity Protection
- Present
- Housing
- Metal, IP30 protection
- Freefall
- IEC 60068-2-32
- Storage temperature
- -40 to 85°C (-40 to 185°F)
- Fiber Ports
- 100M/1G/10G fiber in SC/ST/LC connector, single mode
- Shock
- IEC 60068-2-27
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
- Overload Current Protection
- 1100 mA @ 48 VDC
- Rotary Switch
- configure boot delay interval
- Vibration
- IEC 60068-2-6
- LED Indicators
- PWR1, PWR2, STATE
- Input Voltage
- 12/24/48 VDC redundant dual inputs
- EMS
- EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3; EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3; EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11
- Operating temperature
- -20 to 70°C (-4 to 158°F)
- Connection
- 2 removable 2-contact terminal block
- Insertion Loss
- Max. 1.6 dB
- Optical Switching Time
- Max. 10 ms
- Safety
- UL 508
- Installation
- DIN-rail mounting, wall mounting (with optional kit)
- EMI
- FCC Part 15 Subpart B Class A, EN 55022 Class A
Description
2-channel optical fiber bypass unit with 4 single-mode ports, SC, -20 to 70°C operating temperature
