  7. nVent P000002024 RAYCHEM 120V FrostGuard Pipe Freeze Protection - 18'

This item is Discontinued.

Nvent nVent P000002024 RAYCHEM 120V FrostGuard Pipe Freeze Protection - 18' P000002024

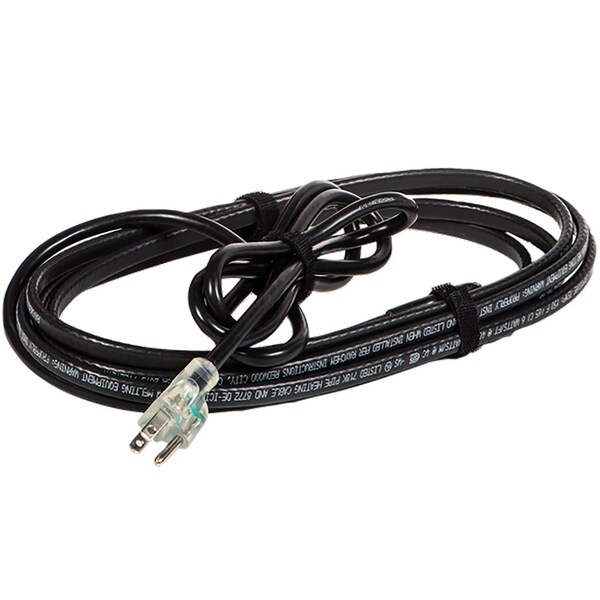

nVent P000002024 RAYCHEM 120V FrostGuard Pipe Freeze Protection - 18' (Discontinued)

  • Mfr # P000002024
  • Zoro # G902207207
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P000002024
Zoro #
G902207207
UPC #
-
Country of Origin
United States

Dimensions

Length
18
Height
79.00 millimetre
Width
305.00 millimetre
Cold Lead Length (foot)
6
Min Bending Radius (millimetre)
16
Nominal Width (millimetre)
11.4
Nominal Height (inch)
0.24
Nominal Height (millimetre)
6.1
Cold Lead Length (metre)
1.83
Length (L) (metre)
5.4
Nominal Width (inch)
0.45
Min Bending Radius (inch)
0.625
Length (L) (foot)
18

Details

Color
Black
Min Installation Temperature (degree Fahrenheit)
5
Conductor Material
Nickel Plated Copper
Max Continuous Exposure Temperature, Power On (degree Fahrenheit)
150
Number of Conductors
2
Wattage
108
Nominal Voltage (volt)
120
Min Installation Temperature (degree Celsius)
-15
NEMA Color
Black
Jacket Material
Modified Polyolefin
Voltage Rating
120
Conductor Quantity
2
Area classification
Non-Hazardous
Insulation Material
Modified Polyolefin
Nominal Power Output @ 40°F, 240V (watt per foot)
6
Resistance
Variable (Self-Regulating)
Ground Path Type
Braid
Nominal Power Output @ 40°F, 120V (watt per foot)
6
Heating Cable Technology
Self-Regulating
Max Continuous Exposure Temperature, Power On (degree Celsius)
65
Nominal Power Output, In Ice or Snow @ 32°F, 120V (watt per foot)
8
Core
Self-regulating conductive core
Temperature Rating
150

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
