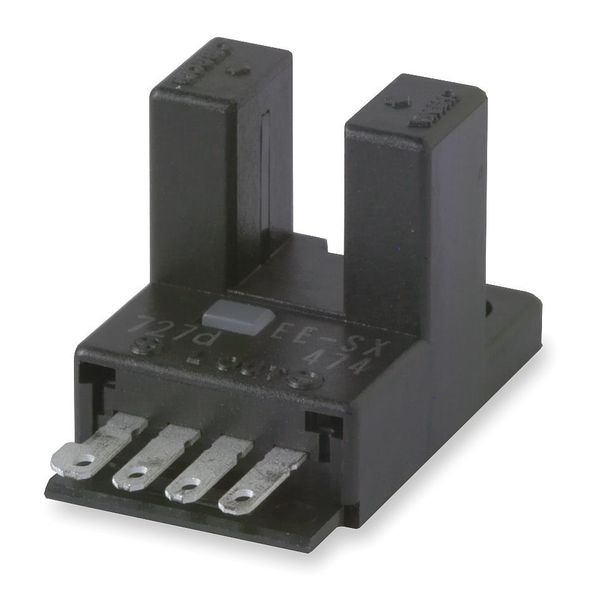

Omron Through-Beam Photoelectric Sensor, Solder Terminal, [delete], Light On, NPN EE-SX474 - main

Through-Beam Photoelectric Sensor, Solder Terminal, [delete], Light On, NPN

  • Mfr # EE-SX474

  • Zoro # G2826713

product price:  $32.15
/ea

Key Features

Sensing Method
Through-Beam
Electrical Connection
Solder Terminal
Width
0.54"
Depth
0.61"
Operating Mode
Light On
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
EE-SX474
Zoro #
G2826713
UPC #
-
Country of Origin
Japan

Dimensions

Width
0.54"
Depth
0.61"
Height - Rectangular Photoelectric Sensor
13 mm
Depth - Rectangular Photoelectric Sensor
15 mm
Width - Rectangular Photoelectric Sensor
14 mm
Min. Object Size
2 x 0.80mm Opaque
Length
0.51"
Overall Height
14 mm
Minimum Object Size
2mm x 0.8mm Opaque
Overall Width
14 mm
Overall Depth
16 mm

Details

Item
Photoelectric Sensor
Sensing Method
Through-Beam
Electrical Connection
Solder Terminal
Operating Mode
Light On
IP Rating
IP50
Output Circuit Type
NPN
DC Voltage Rating
5-24V DC
Standards
CE, RU
Body Material
PBT
Power Requirement - Rectangular Photoelectric Sensor
5 to 24V DC
Features
Output Short-Cut Protection
Max. Sensing Distance
5mm
Operating Temp. Range
-25 Degrees to 55 Degrees C
Max. Load Current
100 mA
Operating Frequency
1,000 Hz
Power Requirement
5 to 24VDC
Max. Sensing Distance - Rectangular Photoelectric Sensor
5 mm
Light Source
Infrared LED
Response Time
0.17 msec
Sensing Distance - Maximum
5 mm
Series
EE-SX47
Emitted Sensor Light
Infrared
Switching Frequency
3 kHz
Electrical Installation Type
Solder Terminal
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
131 Degrees F
Load Current - Maximum
100 mA
Includes Indicator Lights
Indicator Lights Included

Description

Photoelectric Sensor, Operating Mode - Photoelectric Sensor Light On
