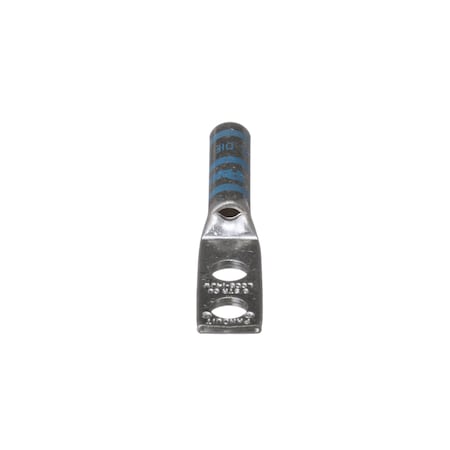

Panduit Copper Compression Lug, 2 Hole, #6 Awg, LCC6-14JW-L

Copper Compression Lug, 2 Hole, #6 Awg, (Discontinued)

  • Mfr # LCC6-14JW-L
  • Zoro # G204859180
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCC6-14JW-L
Zoro #
G204859180
UPC #
7498344365
Country of Origin
Mexico

Dimensions

Tongue Width - Wire Connector
0.48
Overall Length
2.36 in
Barrel Length
1.07
Overall Length (mm)
59.9
Tongue Width (In.)
0.48
Wire Strip Length (mm)
28.6
Stud Hole Size (In.)
44930
Wire Strip Length (In.)
1.13
Overall Length (In.)
2.36
Barrel Length (In.)
1.07
Tongue Width (mm)
12.2
Tongue Thickness (In.)
0.08
Copper Code Conductor Size (AWG)
6
Barrel Length (mm)
27.2
Tongue Thickness (mm)
2
Stud Hole Size (mm)
6.4

Details

Material
Copper
Color Code
Blue
Hole Center to Center
44565
Tool Type
Tin-Plated Copper Compression Connectors - Lugs
Tongue Style
Standard
Panduit Die Index Number
P24
Maximum Voltage (kV)
35
Product Type
Copper Compression Connectors - Lugs
Burndy Die Index Number
7
Barrel Type
Long Barrel Length with Inspection Window
UL Temperature Rating (°C)
90
Tongue Type
Standard
Stud Hole Spacing (In.)
0.5
Stud Hole Spacing (mm)
12.7
Finish/Coating
Tin-Plated
Base Material
Copper
Product Class
Wire Termination

Description

Two-hole, long barrel lug with window, #6 AWG wire, 1/4 stud hole, .50 hole spacing.
