  6. Copper Compression Lug, 2 Hole, 2/0 AWG,

This item is Discontinued.

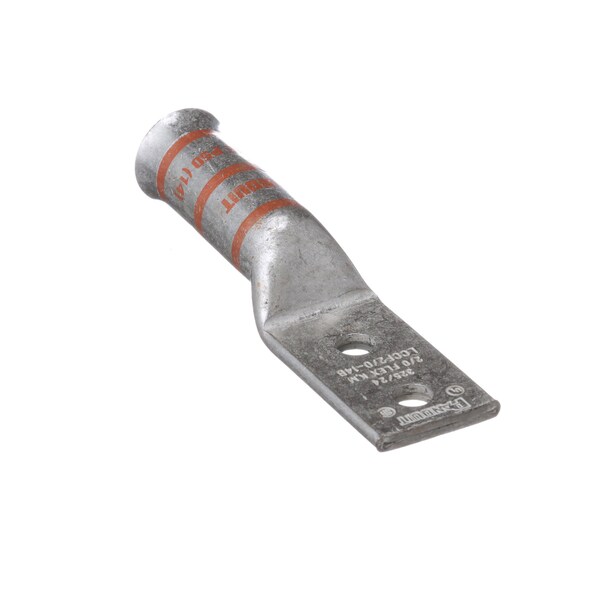

Panduit Copper Compression Lug, 2 Hole, 2/0 AWG, LCCF2/0-14B-X

Copper Compression Lug, 2 Hole, 2/0 AWG, (Discontinued)

  • Mfr # LCCF2/0-14B-X
  • Zoro # G2775780
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LCCF2/0-14B-X
Zoro #
G2775780
UPC #
7498375311
Country of Origin
Mexico

Dimensions

Overall Length
3.56 in
Barrel Length (In.)
1.5
Wire Strip Length (mm)
39.7
Wire Strip Length (In.)
1.5625
Stud Hole Size (In.)
44930
Stud Hole Size (mm)
6.4
Barrel Length (mm)
38.1
Class K Copper Flex Conductor Size (AWG)
36557
Overall Length (In.)
3.56
Class M Copper Flex Conductor Size (AWG)
36557
Overall Length (mm)
90.4
Tongue Width (mm)
24.4
Tongue Thickness (In.)
0.13
Tongue Thickness (mm)
3.3
Tongue Width (In.)
0.96
DLO Copper Flex Conductor Size (AWG)
36557

Details

Tongue Angle
Straight
Color Code
Orange
Features
Corrosion Resistant, Flared Barrel
UL Temperature Rating (°C)
90
Base Material
Copper
Product Type
Compression Connectors - Lugs
Stud Hole Spacing (mm)
19.1
Barrel Type
Long Barrel Length without Inspection Window
Standards Met
CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164
Tongue Type
Standard
Panduit Die Index Number
P50
Maximum Voltage (kV)
35
Stud Hole Spacing (In.)
0.75
Finish/Coating
Tin-Plated
Connector Details
1 x Terminal
Connector Plating
Tin
Product Name
Terminal Connector
Product Material
Copper
Product Class
Wire Termination

Description

Copper Compression Lug, 2 Hole, 2/0 AWG, Flared Barrel, 1/4 (6.4mm) Stud
