  6. Copper Compression Lug, 2 Hole, 45 Degree Bend0 Kcmi

This item is Discontinued.

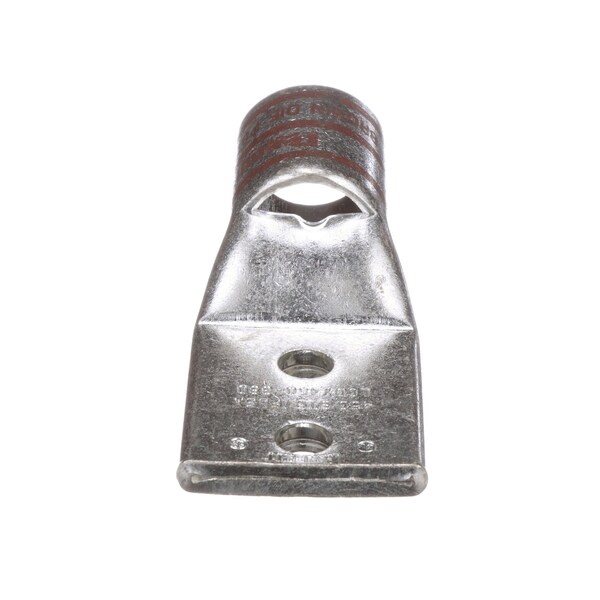

Panduit Copper Compression Lug, 2 Hole, 45 Degree Bend0 Kcmi LCDX450-38D-6

Copper Compression Lug, 2 Hole, 45 Degree Bend0 Kcmi (Discontinued)

  • Mfr # LCDX450-38D-6
  • Zoro # G204858909
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LCDX450-38D-6
Zoro #
G204858909
UPC #
7498345361
Country of Origin
Mexico

Dimensions

Overall Length
3.9 in
Barrel Length (mm)
35.6
Class H Copper Flex Conductor Size (kcmil)
450
Stud Hole Size (mm)
9.5
Class M Copper Flex Conductor Size (kcmil)
450
Overall Length (mm)
99.1
Tongue Width (In.)
1.7
Stud Hole Size (In.)
44993
Tongue Thickness (In.)
0.26
Barrel Length (In.)
1.4
Overall Length (In.)
3.9
Wire Strip Length (mm)
37
Class K Copper Flex Conductor Size (kcmil)
450
DLO Copper Flex Conductor Size (kcmil)
444.4
Tongue Thickness (mm)
6.6
Wire Strip Length (In.)
1.44
Class I Copper Flex Conductor Size (kcmil)
450
Tongue Width (mm)
43.2
Class G Copper Flex Conductor Size (kcmil)
450

Details

Material
Copper
Color Code
Brown
Tool Type
Compression Connectors - Lugs
Hole Center to Center
44628
Finish/Coating
Tin-Plated
Tongue Type
Standard
Barrel Type
Standard Barrel Length with Inspection Window
Stud Hole Spacing (mm)
25.4
Burndy Die Index Number
20
Maximum Voltage (kV)
35
Base Material
Copper
UL Temperature Rating (°C)
90
Stud Hole Spacing (In.)
1
Panduit Die Index Number
P87
Tongue Angle
Straight
Product Type
Compression Connectors - Lugs
Product Class
Wire Termination

Description

Two-hole, flex lug, 450 kcmil cable, 3/8 stud hole, 1 hole spacing.
