This item is Discontinued.

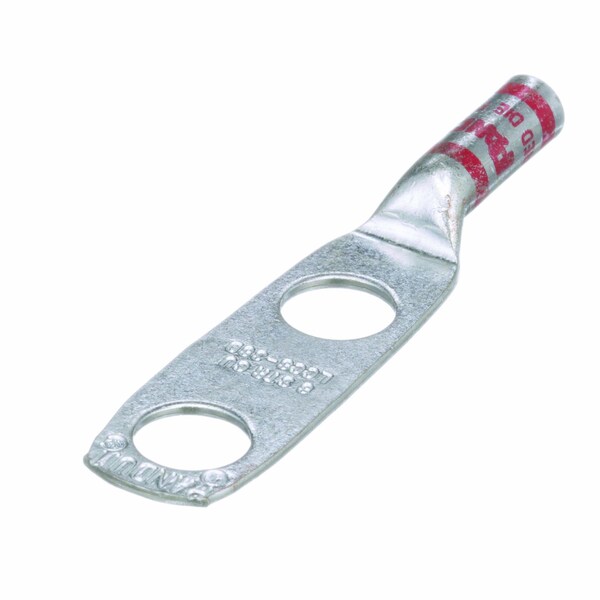

Panduit Copper Compression Lug, 2 Hole, #8 AWG, LCC8-38D-L

Copper Compression Lug, 2 Hole, #8 AWG, (Discontinued)

  • Mfr # LCC8-38D-L
  • Zoro # G2781870
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCC8-38D-L
Zoro #
G2781870
UPC #
7498338267
Country of Origin
Mexico

Dimensions

Length
2.8"
Overall Length
2.75 in
Overall Length (mm)
69.9
Tongue Thickness (mm)
1.3
Tongue Thickness (In.)
0.05
Copper Code Conductor Size (AWG)
8
Stud Hole Size (In.)
44993
Tongue Width (mm)
15.2
Overall Length (In.)
2.75
Tongue Width (In.)
0.6
Wire Strip Length (mm)
19.1
Stud Hole Size (mm)
9.5
Barrel Length (mm)
17.8
Barrel Length (In.)
0.7

Details

Color Code
Red
Features
Corrosion Resistant
Product Type
Copper Compression Connectors - Lugs
Burndy Die Index Number
49
Maximum Voltage (kV)
35
Panduit Die Index Number
P21
Barrel Type
Long Barrel Length without Inspection Window
Finish/Coating
Tin-Plated
UL Temperature Rating (°C)
90
Stud Hole Spacing (In.)
1
Stud Hole Spacing (mm)
25.4
Base Material
Copper
Tongue Type
Standard
Connector Details
1 x Terminal
Product Material
Copper
Product Name
Terminal Connector
Connector Plating
Tin
Product Class
Wire Termination

Description

Copper Compression Lug, 2 Hole, #8 AWG, 3/8 (9.5mm) Stud, 1 (25.4mm) Hole Spacing
