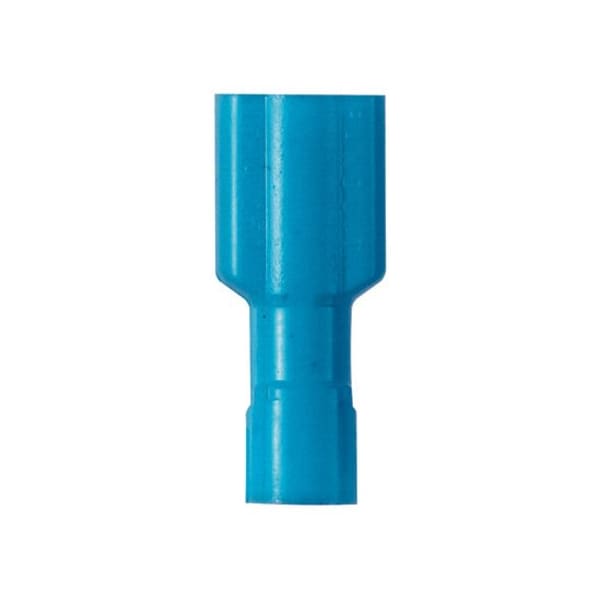

Female Disconnect, Nylon, 16-14AWG, PK1000

  • Mfr # DPF14-250FIB-M
  • Zoro # G0765937
product price:
$
320.99
/pk of 1000, $0.32/ea
Free Shipping & Returns

Key Features

For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Fully Insulated
Overall Length
0.84 in
Features
Flame Retardant, Strain Relief
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DPF14-250FIB-M
Zoro #
G0765937
UPC #
7498320396
Country of Origin
Mexico
Item
Female Disconnect,Nylon,16-14AWG,PK1000
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Blue
Insulation Type
Fully Insulated
Features
Flame Retardant, Strain Relief
Finish
Tinned
Product Type
Disconnect
Disconnect Type
Female Disconnect
Finish/Coating
Tin-Plated
Maximum Voltage (V)
600
Seam Type
Butted
Base Material
Brass
Maximum Operating Temperature (°F)
221
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Operating Temperature (°C)
105
Maximum Voltage (kV)
0.6
Tongue Angle
Straight
Flammability Rating
UL94V-2/UL94-HB
Barrel Type
Funnel
Insulation Material
Premium Nylon
Product Color
Blue
Connector Details
1 x Quick Disconnect
Product Line
DiscoGrip
Contact Plating
Tin
Product Name
DiscoGrip Terminal Connector
Product Material
Brass
Product Class
Disconnects
Max Operating Temperature
105 degrees celsius

Dimensions

Overall Length
0.84 in
Width
0.3"
Minimum Wire Size (AWG)
#16
Tab Size (mm)
6.3 x 0.8
Minimum Metric Conductor Size (mm²)
1.5
Maximum Metric Conductor Size (mm²)
2.5
Tab Size (In.)
0.250 x 0.032
Insulation Diameter (In.)
0.16
Maximum Wire Size (AWG)
#14
Overall Width (In.)
0.33
Overall Length (mm)
21.3
Wire Strip Length (In.)
11933
Wire Strip Length (mm)
7.1
Overall Length (In.)
0.84
Minimum Copper Conductor Size (AWG)
#16
Maximum Wire Insulation Diameter (mm)
4
Insulation Diameter (mm)
4.1
Maximum Wire Insulation Diameter (In.)
0.16
Maximum Copper Conductor Size (AWG)
#14
Overall Width (mm)
8.4

Description

Female Disconnect,Nylon,16-14AWG,PK1000, Package Quantity 1000
