Shop PANDUIT

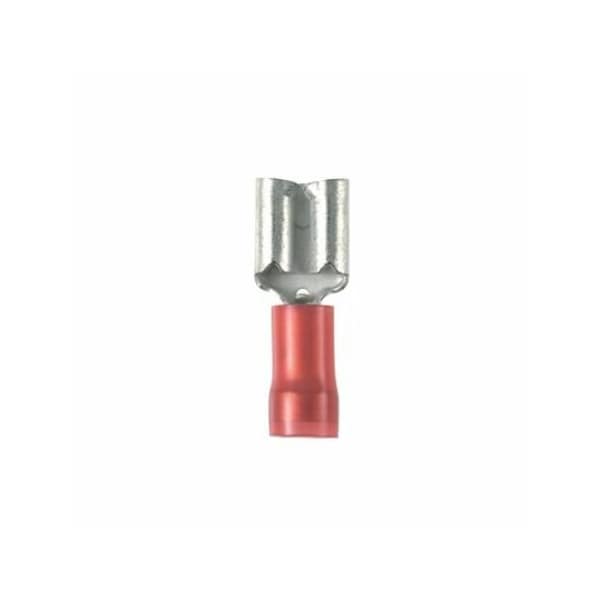

Female Disconnect, Nylon, 22-18AWG, PK100

  • Mfr # DNF18-110-C

  • Zoro # G0765453

product price:  $108.99
/pk 100, $1.09/ea
Free Shipping & Returns

Key Features

For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Red
Insulation Type
Barrel Insulated
Overall Length
0.69 in
Features
Flame Retardant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNF18-110-C
Zoro #
G0765453
UPC #
7498382704
Country of Origin
Mexico

Dimensions

Overall Length
0.69 in
Width
0.2"
Overall Thickness (mm)
0.2
Tab Size (mm)
2.8 x 0.8
Insulation Diameter (mm)
2.5
Minimum Metric Conductor Size (mm²)
0.5
Overall Length (In.)
0.69
Maximum Wire Insulation Diameter (mm)
2.5
Wire Strip Length (In.)
11933
Tab Size (In.)
0.110 x 0.032
Maximum Wire Size (AWG)
#18
Overall Length (mm)
17.5
Wire Strip Length (mm)
7.1
Maximum Wire Insulation Diameter (In.)
0.1
Minimum Wire Size (AWG)
#22
Maximum Metric Conductor Size (mm²)
1
Maximum Copper Conductor Size (AWG)
#18
Overall Width (mm)
3.8
Minimum Copper Conductor Size (AWG)
#22
Overall Width (In.)
0.15
Overall Thickness (In.)
0.1
Insulation Diameter (In.)
0.1

Details

Item
Female Disconnect,Nylon,22-18AWG,PK100
For Use With
CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Color Code
Red
Insulation Type
Barrel Insulated
Features
Flame Retardant
Finish
Tinned
Flammability Rating
UL94-HB
Insulation Material
Nylon
Maximum Voltage (kV)
0.3
Disconnect Type
Female Disconnect
Base Material
Brass
Maximum Voltage (V)
300
Finish/Coating
Tin-Plated
Maximum Operating Temperature (°F)
194
Barrel Type
Funnel
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Operating Temperature (°C)
90
Product Type
Disconnect
Tongue Angle
Straight
Product Color
Red
Contact Plating
Tin
Connector Details
1 x Quick Disconnect
Product Name
Terminal Connector
Product Class
Disconnects
Max Operating Temperature
90 degrees celsius

Description

Female Disconnect,Nylon,22-18AWG,PK100, Package Quantity 100
