Shop All Compression Lugs
Panduit

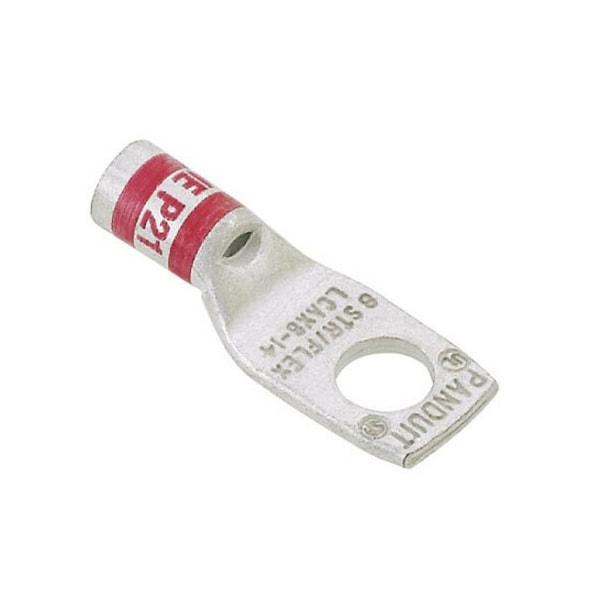

Lug Compression Connector, 1/0 AWG

product price: $7.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cable Size 1/0 AWG
  • Connector Type Standard Barrel
  • Width 0.85"
  • Material Tin-Plated Copper
  • Length 1.89"
See all product information

Product Information

Dimensions

Cable Size 1/0 AWG
Width 0.85"
Length 1.89"
Overall Length 1.89 in
Wire Strip Length (mm) 19.1
Barrel Length (mm) 18.3
Stud Hole Size (mm) 9.5
Class G Copper Flex Conductor Size (AWG) 36526
Inside Diameter (mm) 11.43
Inside Diameter (In.) 0.45
Stud Hole Size (In.) 44993
Barrel Length (In.) 0.72
Class I Copper Flex Conductor Size (AWG) 36526
Copper Code Conductor Size (AWG) 36526
Tongue Width (In.) 0.85
Class H Copper Flex Conductor Size (AWG) 36526
Outer Diameter (mm) 14.73
Wire Strip Length (In.) 44989
Class K Copper Flex Conductor Size (AWG) 36526
Class M Copper Flex Conductor Size (AWG) 36526
Tongue Width (mm) 21.6
Outer Diameter (In.) 0.58
Overall Length (In.) 1.89
Overall Length (mm) 48
DLO Copper Flex Conductor Size (AWG) 36526

Details

Connector Type Standard Barrel
Material Tin-Plated Copper
Color Code Pink
Item Lug Compression Connector
Connection Type 1 x Terminal
Connection Material Tin
Features Angled Connector, Corrosion Resistant
Maximum Voltage (kV) 35
Product Type Copper Compression Connectors - Lugs
Tongue Thickness (mm) 3.3
Tongue Angle Straight
UL Temperature Rating (°C) 90
Barrel Type Standard Barrel with Inspection Window
Burndy Die Index Number 12
Finish/Coating Tin-Plated
Tongue Thickness (In.) 0.13
Tongue Type Standard
Panduit Die Index Number P42
Standards Met C22.2 No. 65-13, 486A-486B File #E52164
Lug Type 1 Stud Hole Lug
T & B Die Index Number 12
Base Material Copper
Connector Details 1 x Terminal
Product Name Terminal Connector
Connector Plating Tin
Product Material Copper
Product Class Lugs, Splices, Split Bolts & Accessories

Description

Lug Compression Connector,1/0 AWG
