  6. Lug Compression Connector, 4-3 AWG

This item is Discontinued.

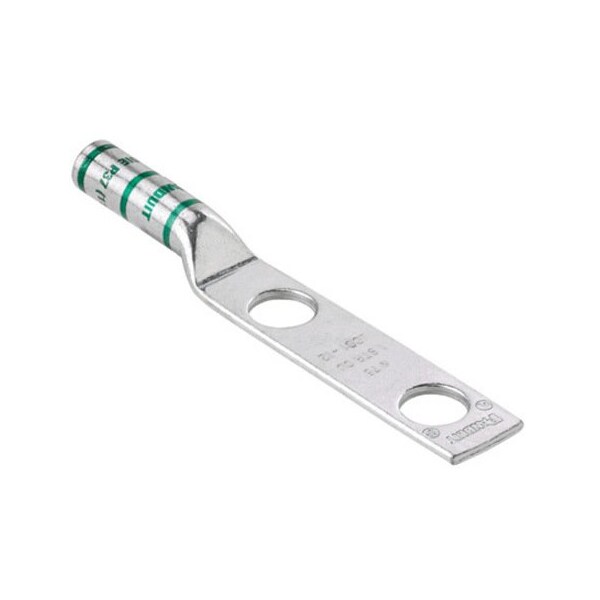

Panduit Lug Compression Connector, 4-3 AWG LCC4-14A-L

Lug Compression Connector, 4-3 AWG (Discontinued)

  • Mfr # LCC4-14A-L
  • Zoro # G0775910
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCC4-14A-L
Zoro #
G0775910
UPC #
7498338252
Country of Origin
Mexico

Dimensions

Cable Size
4 to 3 AWG STR, 2 AWG SOL
Width
0.55"
Length
2.58"
Overall Length
2.58 in
Tongue Thickness (In.)
0.09
Inside Diameter (In.)
0.28
Tongue Width (In.)
0.55
Stud Hole Size (mm)
6.4
Overall Length (mm)
65.5
Barrel Length (mm)
26.7
Outer Diameter (In.)
0.38
Wire Strip Length (In.)
39448
Inside Diameter (mm)
7.11
Stud Hole Size (In.)
44930
Barrel Length (In.)
1.05
Wire Strip Length (mm)
28.6
Copper Code Conductor Size (AWG)
4
Outer Diameter (mm)
9.65
Overall Length (In.)
2.58
Tongue Thickness (mm)
2.3
Tongue Width (mm)
14

Details

Connector Type
Long Barrel
Material
Tin-Plated Copper
Color Code
Gray
Item
Lug Compression Connector
Connection Type
1 x Terminal
Connection Material
Tin
Features
Corrosion Resistant
UL Temperature Rating (°C)
90
Product Type
Copper Compression Connectors - Lugs
Stud Hole Spacing (In.)
0.63
Tongue Type
Standard
Tongue Angle
Straight
Finish/Coating
Tin-Plated
Maximum Voltage (kV)
35
Barrel Type
Long Barrel without Inspection Window
Stud Hole Spacing (mm)
16
Lug Type
2 Stud Hole Lug
T & B Die Index Number
8
Burndy Die Index Number
8
Panduit Die Index Number
P29
Standards Met
C22.2 No. 65-13, 486A-486B File #E52164
Base Material
Copper
Product Material
Copper
Connector Plating
Tin
Connector Details
1 x Terminal
Product Name
Terminal Connector
Product Class
Lugs, Splices, Split Bolts & Accessories

Description

Lug Compression Connector,4-3 AWG
