  6. Lug Compression Connector, No.2 AWG

This item is Discontinued.

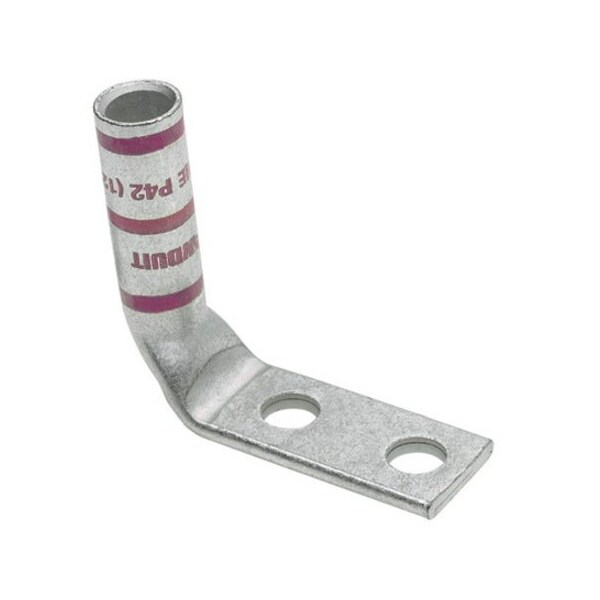

Panduit Lug Compression Connector, No.2 AWG LCC2-14AWF-Q

Lug Compression Connector, No.2 AWG (Discontinued)

  • Mfr # LCC2-14AWF-Q
  • Zoro # G0775527
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LCC2-14AWF-Q
Zoro #
G0775527
UPC #
7498380594
Country of Origin
Mexico

Dimensions

Cable Size
2 AWG
Width
0.6"
Length
1.86"
Overall Length
1.86 in
Barrel Length (In.)
1.16
Tongue Width (mm)
15.2
Stud Hole Size (mm)
6.4
Tongue Thickness (In.)
0.1
Copper Code Conductor Size (AWG)
2
Wire Strip Length (In.)
1.25
Barrel Length (mm)
29.5
Stud Hole Size (In.)
44930
Wire Strip Length (mm)
31.8
Tongue Thickness (mm)
2.5
Overall Length (In.)
1.86
Overall Length (mm)
47.2
Tongue Width (In.)
0.6

Details

Connector Type
Long Barrel
Material
Tin-Plated Copper
Color Code
Brown
Item
Lug Compression Connector
Connection Type
1 x Terminal
Connection Material
Tin
Features
Corrosion Resistant, 90° Angled Connector
Barrel Type
Long Barrel Length with Inspection Window
Finish/Coating
Tin-Plated
UL Temperature Rating (°C)
90
Maximum Voltage (kV)
35
Panduit Die Index Number
P33
Burndy Die Index Number
10
Stud Hole Spacing (In.)
0.63
Tongue Type
Standard
Stud Hole Spacing (mm)
16
Base Material
Copper
Product Type
Copper Compression Connectors - Lugs
Product Material
Copper
Product Name
Terminal Connector
Connector Details
1 x Terminal
Connector Plating
Tin
Product Class
Wire Termination

Description

Lug Compression Connector,No.2 AWG
