This item is Discontinued.

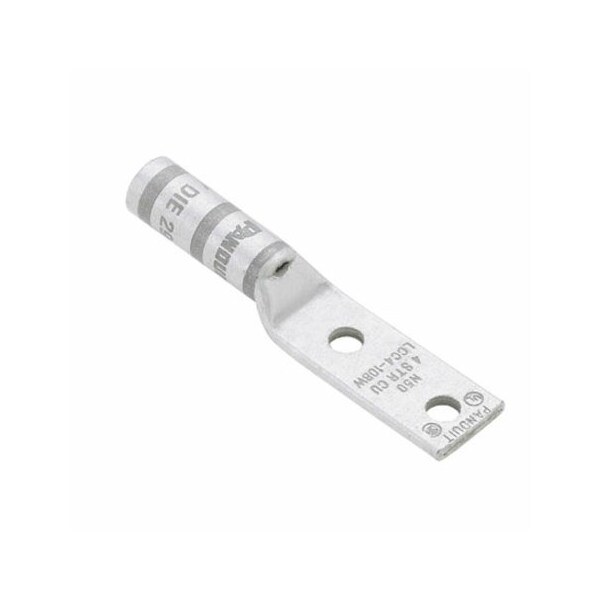

Panduit Lug Compression Connector, No.4 AWG LCCX4-14B-L

Lug Compression Connector, No.4 AWG (Discontinued)

  • Mfr # LCCX4-14B-L
  • Zoro # G0777067
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LCCX4-14B-L
Zoro #
G0777067
UPC #
7498342548
Country of Origin
Mexico

Dimensions

Cable Size
4 AWG
Width
0.55 in
Length
2.63 in
Overall Length
2.63 in
Class I Copper Flex Conductor Size (AWG)
4
Overall Length (In.)
2.63
Overall Length (mm)
66.8
Class G Copper Flex Conductor Size (AWG)
4
Tongue Width (mm)
14
Stud Hole Size (In.)
44930
Barrel Length (In.)
1.05
Class M Copper Flex Conductor Size (AWG)
4
Copper Code Conductor Size (AWG)
4
Class K Copper Flex Conductor Size (AWG)
4
Stud Hole Size (mm)
6.4
Class H Copper Flex Conductor Size (AWG)
4
Wire Strip Length (In.)
1.13
Barrel Length (mm)
26.7
Tongue Thickness (In.)
0.09
Tongue Width (In.)
0.55
Wire Strip Length (mm)
29
Tongue Thickness (mm)
2.3
DLO Copper Flex Conductor Size (AWG)
4

Details

Item
Lug Compression Connector
Connector Type
Long Barrel
Material
Tin-Plated Copper
Color Code
Gray
Features
Corrosion Resistant
Connection Type
1 x Terminal
Connection Material
Tin
Burndy Die Index Number
8
UL Temperature Rating (°C)
90
Stud Hole Spacing (In.)
0.75
Maximum Voltage (kV)
35
Tongue Type
Standard
Product Type
Compression Connectors - Lugs
Stud Hole Spacing (mm)
19.1
Barrel Type
Long Barrel Length with Inspection Window
Panduit Die Index Number
P29
Base Material
Copper
Finish/Coating
Tin-Plated
Product Material
Copper
Connector Details
1 x Terminal
Connector Plating
Tin
Product Name
Terminal Connector
Product Class
Wire Termination

Description

Lug Compression Connector,No.4 AWG
