  6. Lug, Cu, F, 2/0 Awg, 1/4 Stud

This item is Discontinued.

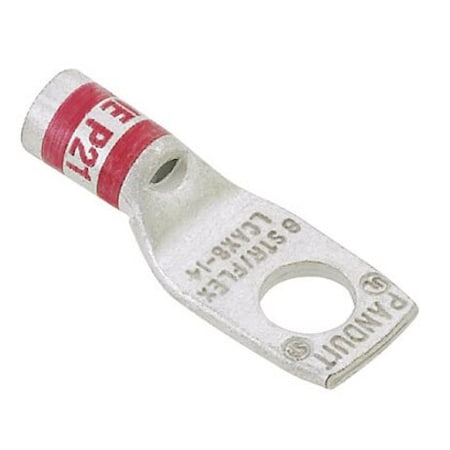

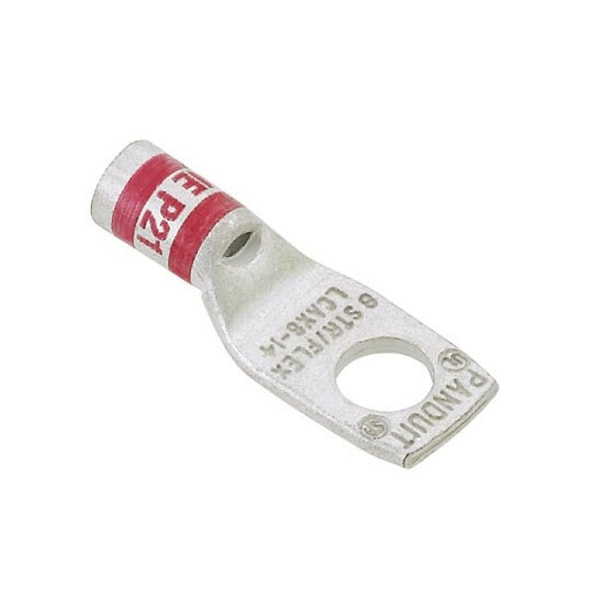

Panduit Lug, Cu, F, 2/0 Awg, 1/4 Stud LCAX2/0-14-X

Lug, Cu, F, 2/0 Awg, 1/4 Stud (Discontinued)

  • Mfr # LCAX2/0-14-X
  • Zoro # G0423925
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LCAX2/0-14-X
Zoro #
G0423925
UPC #
7498344305
Country of Origin
Mexico

Dimensions

Cable Size
2/0 AWG
Width
0.96"
Length
1.97"
Overall Length
1.97 in
Barrel Length (In.)
0.83
Overall Length (mm)
50
Class M Copper Flex Conductor Size (AWG)
36557
Overall Length (In.)
1.97
Tongue Thickness (mm)
3.3
Wire Strip Length (mm)
22.2
Tongue Thickness (In.)
0.13
Copper Code Conductor Size (AWG)
36557
Wire Strip Length (In.)
45115
Barrel Length (mm)
21.1
Class H Copper Flex Conductor Size (AWG)
36557
Class I Copper Flex Conductor Size (AWG)
36557
Stud Hole Size (mm)
6.4
Class G Copper Flex Conductor Size (AWG)
36557
Class K Copper Flex Conductor Size (AWG)
36557
Stud Hole Size (In.)
44930
DLO Copper Flex Conductor Size (AWG)
36557
Tongue Width (mm)
24.4
Tongue Width (In.)
0.96

Details

Item
Lug Compression Connector
Material
Tin-Plated Copper
Tongue Angle
Straight
Color Code
Black
Connector Type
Standard Barrel
Connection Type
1 x Terminal
Connection Material
Tin
Features
Angled Connector, Corrosion Resistant
Standards Met
CSA certifiied C22.2 No. 65-13, UL listed 486A-486B File #E52164
Maximum Voltage (kV)
35
Product Type
Copper Compression Connectors - Lugs
Barrel Type
Standard Barrel Length with Inspection Window
Finish/Coating
Tin-Plated
Base Material
Copper
Burndy Die Index Number
13
T & B Die Index Number
45
UL Temperature Rating (°C)
90
Panduit Die Index Number
P45
Tongue Type
Standard
Product Material
Copper
Connector Plating
Tin
Connector Details
1 x Terminal
Product Name
Terminal Connector
Product Class
Wire Termination

Description

One-hole, flex lug, 2/0 AWG wire, 1/4 stud hole, standard package.
