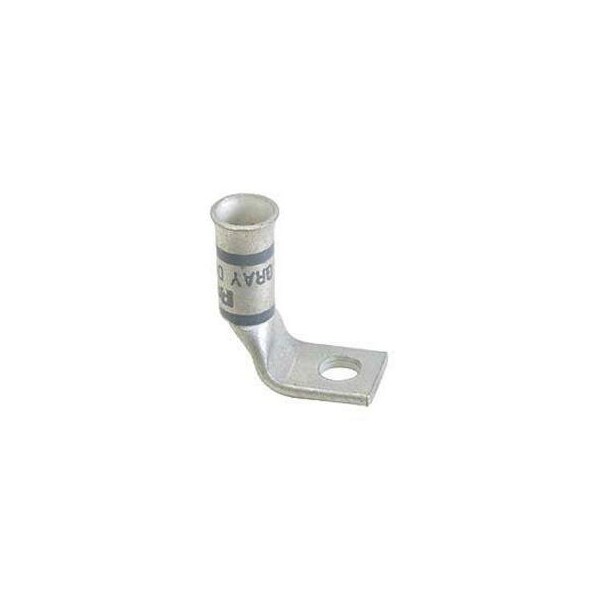

One-Hole Compression Lug, 2 AWG Max, Standard Barrel, Copper, Brown

  • Mfr # LCAF2-14F-E

  • Zoro # G0772480


product price:  $9.49
/ea

Key Features

For Wire Size
2 AWG
For Conductor Material
Copper
Material
Copper
Barrel Size
Standard
Tongue Width
0.70 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LCAF2-14F-E
Zoro #
G0772480
UPC #
7498387242
Country of Origin
Mexico

Dimensions

For Wire Size
2 AWG
Barrel Size
Standard
Tongue Width
0.70 in
Length
1.35"
Width
0.7"
Cable Size
2 AWG
Overall Length
1.35 in
Barrel Length (In.)
0.88
Tongue Width (In.)
0.7
Barrel Length (mm)
22.4
Stud Hole Size (mm)
6.4
Wire Strip Length (mm)
23.8
Tongue Thickness (In.)
0.11
Tongue Width (mm)
17.8
Wire Strip Length (In.)
15/16
Tongue Thickness (mm)
2.8
Overall Length (mm)
34.3
Stud Hole Size (In.)
44930
Overall Length (In.)
1.35

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
90 Degrees Angled
Color Code
Brown
Connector Type
Flared Barrel
Connection Material
Tin
Connection Type
1 x Terminal
Features
Corrosion Resistant, 90° Angled Connector
UL Temperature Rating (°C)
90
Product Type
Copper Compression Connectors - Lugs
Connector Details
1 x Terminal
Connector Plating
Tin
Product Name
Terminal Connector
Product Material
Copper
Product Class
Wire Termination

Description

Lug Compression Connector,No.2 AWG
