  9. Wire Duct, Wide Slot, Gray, 1.75 W x 1.5 D
Shop All Wire Ducts
Panduit

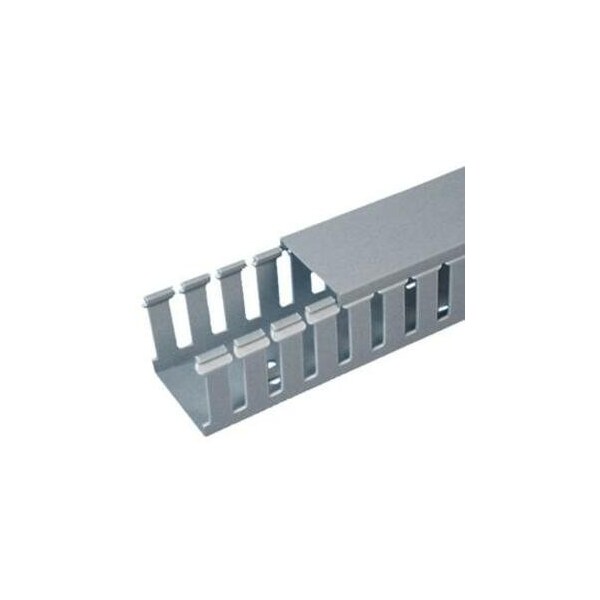

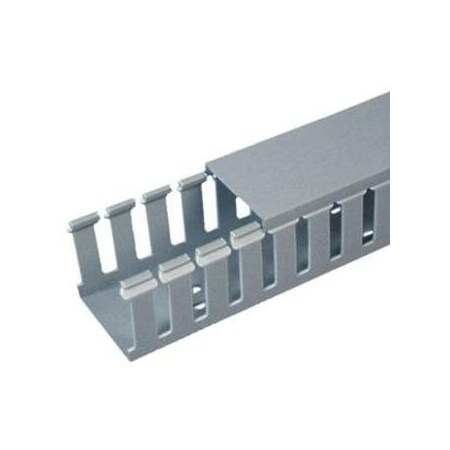

Wire Duct, Wide Slot, Gray, 1.75 W x 1.5 D

original price: $43.09
13% off
new price: $37.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Wall Type Slotted
  • Mounting Style Screw Mount/Adhesive Back
  • Color Gray
  • Material Lead-Free PVC
  • Length 72 in
See all product information

Product Information

  • Brand Panduit
  • MFR # G1.5X1.5LG6-A
  • Zoro # G0855163
  • UPC #
    074983546800
  • Country of Origin United States
  • Category Wire Ducts

Dimensions

Length 72 in
Width 1 3/4 in
Height 1 5/8 in
Slot Height 0.6 in
Slot Width 0.3 in
Length (Straight Wireway) 6 ft
Nominal Height 1 1/2 in
Nominal Width 1 1/2 in
Overall Length (ft.) 6
Overall Width (In.) 1.75
Overall Length (m) 1.8
Slot Width (mm) 7.9
Overall Height (In.) 1.62
Overall Width (mm) 44.4
Slot Width (In.) 0.31
Overall Height (mm) 41.1
Depth 72"

Details

Item Wiring Duct
Wall Type Slotted
Mounting Style Screw Mount/Adhesive Back
Color Gray
Material Lead-Free PVC
Slot-to-Slot Centerline 4/5 in
Standards CE Compliant, RoHS, UL Listed
Compatible Cover Style Snap-On
Type Wiring Duct Base
Wall Design Slotted
Application Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications
Mount Method Mounting Holes with Adhesive
Note Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation
Includes Wiring Duct Base with Adhesive
Flammability Rating UL94 V-0
Measurement System Imperial
Product Type Base Wiring Duct
Cover Part Number C1.5LG6
Wiring Duct Type G
Wiring Duct Style Wide Slot Wiring Duct
Product Name 6ft Panduct Type G - Wide Slot Wiring Duct
Product Material Polyvinyl Chloride (PVC)
Product Line Panduct
Cable Manager Type Cable Duct
Additional Information </li> </ul>Thickness: 0.07 inch</li><li>Mounting Holes: On Centerline</li></ul>
Certifications & Standards </li> </ul>RoHS</li><li>CSA</li><li>UL94V-0</li><li>CE</li></ul>
Product Model Type G
Product Color Light Gray
Sub Brand Panduct®
Standards Met RoHS Compliant, UL Recognized, CE Compliant

Description

Wiring Duct, Wall Type Wide Slot, Width 1 3/4 in, Height 1 5/8 in, Slot Width 0.3 in, Material Lead-Free PVC, Color Gray, Mounting Style Screw Mount/Adhesive Back, Length 72 in, Slot Height 0.6 in, Slot-to-Slot Centerline 4/5 in, Standards CE Compliant, RoHS, UL Listed, Compatible Cover Style Snap-On, Nominal Height 1 1/2 in, Nominal Width 1 1/2 in
