  9. Wire Duct, Wide Slot, Gray, 1.75 W x 2 D
Shop All Wire Ducts
Panduit

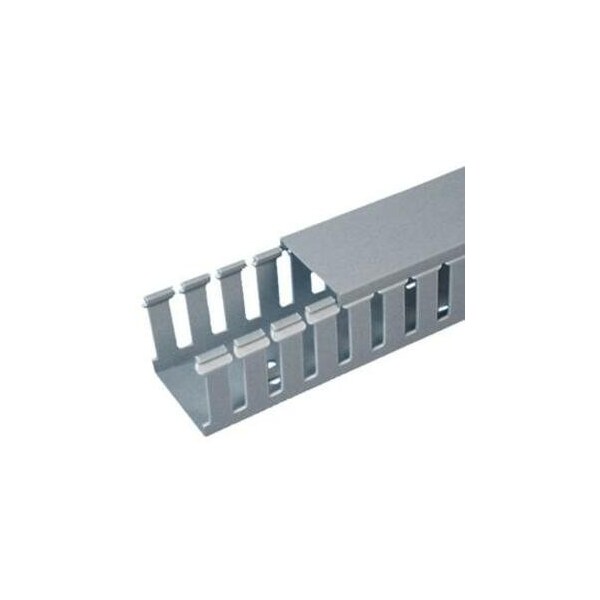

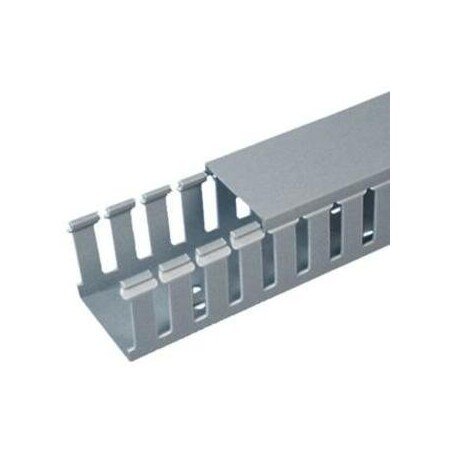

Wire Duct, Wide Slot, Gray, 1.75 W x 2 D

product price: $42.25
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Style Screw Mount/Adhesive Back
  • Wall Type Slotted
  • Color Gray
  • Material Lead-Free PVC
  • Length 72 in
See all product information

Product Information

  • Brand Panduit
  • MFR # G1.5X2LG6-A
  • Zoro # G1828574
  • UPC #
    074983546817
  • Country of Origin United States
  • Category Wire Ducts

Dimensions

Length 72 in
Width 1 3/4 in
Height 2 1/8 in
Slot Height 1.1 in
Slot Width 0.3 in
Length (Straight Wireway) 6 ft
Nominal Width 1 1/2 in
Nominal Height 2 in
Overall Length (ft.) 6
Overall Width (mm) 44.5
Overall Height (In.) 2.12
Overall Height (mm) 53.8
Slot Width (In.) 0.31
Overall Width (In.) 1.75
Overall Length (m) 1.8
Slot Width (mm) 7.9

Details

Item Wiring Duct
Mounting Style Screw Mount/Adhesive Back
Wall Type Slotted
Color Gray
Material Lead-Free PVC
Slot-to-Slot Centerline 4/5 in
Standards CE Compliant, RoHS, UL Listed
Type Wiring Duct Base
Compatible Cover Style Snap-On
Wall Design Slotted
Wiring Duct Style Wide Slot Wiring Duct
Wiring Duct Type G
Mount Method Mounting Holes with Adhesive
Note Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation
Product Type Base Wiring Duct
Application Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications
Measurement System Imperial
Includes Base Only
Flammability Rating UL94 V-0
Cover Part Number C1.5LG6
Additional Information </li> </ul>Thickness: 0.08 inch</li><li>Mounting Holes: On Centerline</li></ul>
Product Model Type G
Product Color Light Gray
Certifications & Standards </li> </ul>RoHS</li><li>CSA</li><li>UL94V-0</li><li>CE</li></ul>
Product Line Panduct
Cable Manager Type Cable Duct
Product Name 6ft Panduct Type G - Wide Slot Wiring Duct
Product Material Polyvinyl Chloride (PVC)
Sub Brand Panduct®
Standards Met RoHS Compliant, UL Recognized, CE Compliant

Description

Wiring Duct, Wall Type Wide Slot, Width 1 3/4 in, Height 2 1/8 in, Slot Width 0.3 in, Material Lead-Free PVC, Color Gray, Mounting Style Screw Mount/Adhesive Back, Length 72 in, Slot Height 1.1 in, Slot-to-Slot Centerline 4/5 in, Standards CE Compliant, RoHS, UL Listed, Compatible Cover Style Snap-On, Nominal Height 2 in, Nominal Width 1 1/2 in
