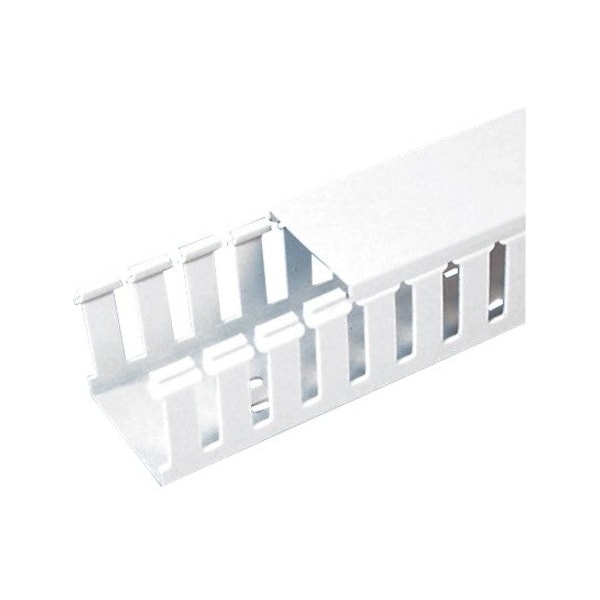

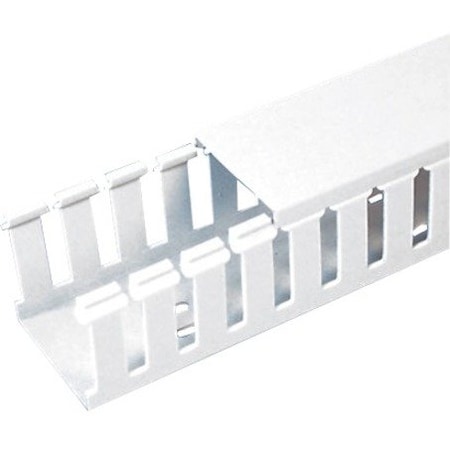

Panduit Wire Duct, Wide Slot, White, 2.25 W x 2 D G2X2WH6

This item is Discontinued.

Panduit

Wire Duct, Wide Slot, White, 2.25 W x 2 D (Discontinued)

Mfr # G2X2WH6
Zoro # G0575994
UPC # 074983546220
Country of Origin United States
Category Wire Ducts
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
G2X2WH6
Zoro #
G0575994
UPC #
074983546220
Country of Origin
United States

Dimensions

Length
72 in
Width
2 1/4 in
Height
2 1/8 in
Slot Height
1.1 in
Slot Width
0.3 in
Length (Straight Wireway)
6 ft
Nominal Height
2 in
Nominal Width
2 in
Overall Length (ft.)
6
Overall Length (m)
1.8
Overall Width (In.)
2.25
Overall Height (In.)
2.12
Slot Width (mm)
7.9
Overall Width (mm)
57.2
Slot Width (In.)
0.31
Overall Height (mm)
53.8

Details

Item
Wiring Duct
Wall Type
Wide Slot
Mounting Style
Screw Mount
Color
White
Material
Lead-Free PVC
Slot-to-Slot Centerline
4/5 in
Standards
CE Compliant, RoHS, UL Listed
Compatible Cover Style
Snap-On
Application
Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications
Includes
Base Only
Wiring Duct Type
G
Measurement System
Metric
Mount Method
Mounting Holes
Flammability Rating
UL94V-0
Product Type
Base Wiring Duct
Wiring Duct Style
Wide Slot Wiring Duct
Cover Part Number
C2WH6
Cable Manager Type
Wiring Duct
Product Name
Cable Guide Wiring Duct
Environmentally Friendly
Yes
Product Color
White
Product Material
Polyvinyl Chloride (PVC)
Sub Brand
Panduct®
Standards Met
RoHS Compliant, UL Recognized, CE Compliant; CSA Approved

Description

Wiring Duct, Wall Type Wide Slot, Width 2 1/4 in, Height 2 1/8 in, Slot Width 0.3 in, Material Lead-Free PVC, Color White, Mounting Style Screw Mount, Length 72 in, Slot Height 1.1 in, Slot-to-Slot Centerline 4/5 in, Standards CE Compliant, RoHS, UL Listed, Compatible Cover Style Snap-On, Nominal Height 2 in, Nominal Width 2 in
