Shop All Cylinder Mounting Hardware
Parker

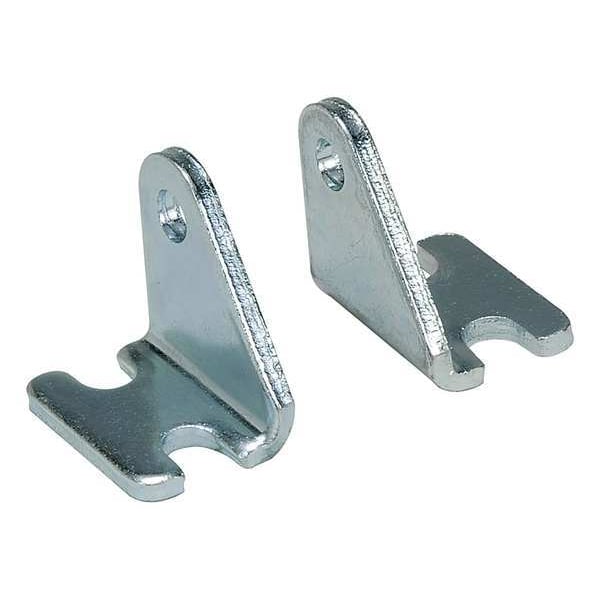

Pivot Bracket Kit, 1-1/8In.

product price: $6.85
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bore Dia. (In.) 3/4 in, 7/8 in, 1 1/16 in
  • Mount Type Pivot Bracket
  • Material Stainless Steel
  • Fits 1-1/16 in Bore, 3/4 in Bore, 7/8 in Bore
  • Dimension G (In.) 0.27 in
See all product information

Product Information

Dimensions

Bore Dia. (In.) 3/4 in, 7/8 in, 1 1/16 in
Dimension G (In.) 0.27 in
Dimension E (In.) 0.19 in
Dimension J (In.) 0.255 in
Dimension C (In.) 1.12 in
Dimension L (In.) 0.81 in
Dimension H (In.) 0.31 in
Overall Length (In.) 1.125 in
Dimension F (In.) 0.12 in
Dimension A (In.) 1.19 in
Dimension B (In.) 0.88 in
Dimension M (In.) 0.25 in
Overall Length 1 1/8 in
For Bore Diameter 3/4 in, 7/8 in, 1 1/16 in
Overall Height 1 3/16 in
Overall Width 1 1/8 in

Details

Mount Type Pivot Bracket
Material Stainless Steel
Fits 1-1/16 in Bore, 3/4 in Bore, 7/8 in Bore
Includes (2) Pivot Brackets
Item Pivot Bracket Kit
Body Material Stainless Steel
Product Type Pivot Bracket Assembly
System of Measurement Inch

Description

Pivot Bracket Kit, Mount Type Pivot Bracket, For Bore Diameter 3/4 in, 7/8 in, 1 1/16 in, Body Material Stainless Steel, Overall Length 1 1/8 in, Mount Hole Center-to-Center Width Not Applicable, Overall Width 1 1/8 in, Overall Height 1 3/16 in, Includes (2) Pivot Brackets, Product Type Pivot Bracket Assembly, System of Measurement Inch
