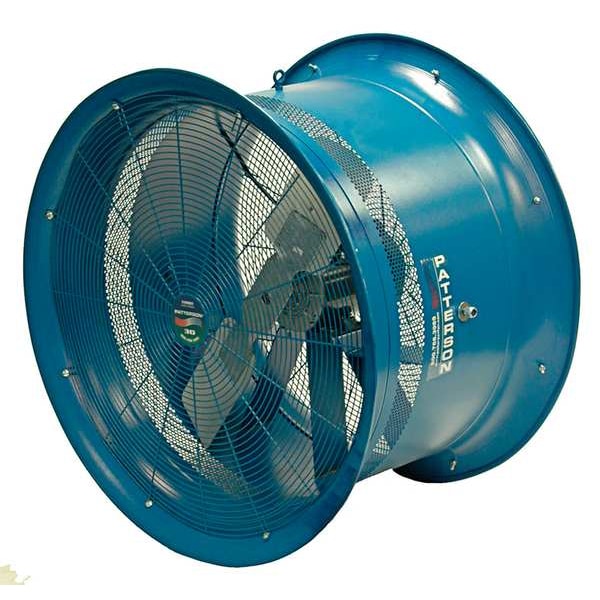

Patterson High-Velocity Industrial Fan, Ceiling, Floor, Wall Mount, 30" Blade Dia, 115/220VAC, 12,000 CFM H30A-CS

This item is Discontinued.

Patterson

High-Velocity Industrial Fan, Ceiling, Floor, Wall Mount, 30" Blade Dia, 115/220VAC, 12,000 CFM (Discontinued)

Mfr # H30A-CS
Zoro # G6227611
Country of Origin United States
Category Air Circulators
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H30A-CS
Zoro #
G6227611
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
30 in
Blade Dia.
30"
Width
37 in
Shaft Dia.
7/8 in
Height
37 in
Max. Depth
22"
Outside Dia.
37"
Depth
22 in

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/220V AC
Phase
Single
Motor HP
1 hp
Air Flow
12,000 cfm
Drive Type
Direct Drive
Item
High Velocity Industrial Fan
Wire Guard Finish
Powder Coated
Fan RPM
1725
Bearing Type
Ball
NEMA Plug Configuration
5-15P
Motor RPM
1725
Max. Ambient Temp.
105 Degrees F
Motor Enclosure
Totally Enclosed Fan Cooled
Operating Amps
13.4/6.8-6.7
Fan Mounting Location
Fan Head Only
Speeds
1
Air Velocity (FPM) @ 60 Ft.
575
Air Velocity @ 40 Ft.
700 fpm
Motor Type
Permanent Split Capacitor
Motor Insulation
B
Assembled
Yes
Hz
60 Hz
Application
Spot Cooling and People Cooling
Includes
12 ft Cord with 115V Plug, Other Voltages Require Hard Wiring Per Wiring Instructions on Motor Plate
Housing Material
Steel
CFM High
12,000
Requires
Mounting Devices For Specific Applications, use Either 6ALG3, 6ALH4, 6ALG5 or 6ALG6
Air Velocity (FPM) @ 20 Ft.
925
Air Velocity (FPM) @ 80 Ft.
455
Thermal Protection
Auto
Number of Conductors
3
Air Velocity @ 80 Ft.
455 fpm
Standards
OSHA Compliant Wire Guards
Air Velocity @ 20 Ft.
925 fpm
Number of Blades
2
Watts
750
Air Velocity (FPM) @ 40 Ft
700
Guard Material
Steel
Air Velocity @ 60 Ft.
575 fpm
Oscillating / Non-Oscillating
Non-Oscillating
Frame Material
Steel
Environmental Applications
Industrial
Amps
13.4/6.8-6.7
RPM
1,725 RPM
Wheeled Base
Stationary
Fan Housing Material
Steel
Assembly Required
No
Material
Steel
Oscillating
No
Product Type
High-Velocity Industrial Fan
Guard Color
Blue
Airflow
12,000 cfm

Description

Air Cannon, Industrial, Non-oscillating, Assembled, Drive Type Direct, Propeller Dia. 30 In., CFM High 12,000, 115/208-230 Voltage, 60 Hz, 1 Phase, Operating Amps 13.4/6.8-6.7, Motor HP 1, Mounting Location Wall, Ceiling or Floor with Appropriate Accessory, Cord Length 12 Ft., Requires Mounting Devices For Specific Applications, use Either 6ALG3, 6ALH4, 6ALG5 or 6ALG6, Includes 12 Foot Cord with 115P Plug, Other Voltages Require Hard Wiring Per Wiring Instructions on Motor Plate
