Shop PNEUMADYNE

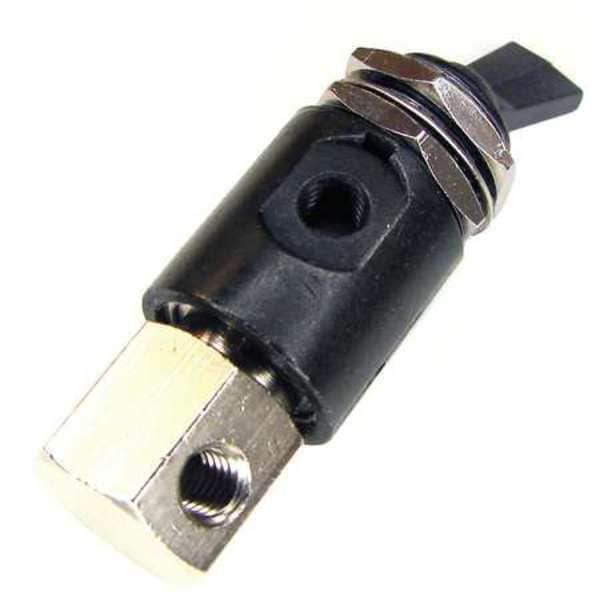

Manual Air Control Valve, Toggle

  • Mfr # H0-30-3
  • Zoro # G4273421
product price:
$
27.15
/ea

Key Features

Center Position
Closed
Coefficient of Volume
0.24
Number of Ways
Three-Way
Series
0
Number of Positions
Three-Position
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
H0-30-3
Zoro #
G4273421
UPC #
-
Country of Origin
United States
Item
Manual Air Control Valve
Center Position
Closed
Coefficient of Volume
0.24
Number of Ways
Three-Way
Series
0
Number of Positions
Three-Position
Connection Type
UNF
Handle Type
Detented Toggle
CFM @ 75 PSI
17.3 cfm
Seal Material
Buna-N
Seat Material
Buna-N
Body Material
Aluminum, Brass
Max. Pressure
125 psi
Temp. Range
-20 Degrees to 160 Degrees F
Stem Material
brass
Valve Configuration
Normally Closed
Valve Design
3-Way
Product Type
Manual Air Control Valve
Operating Pressure - Maximum
125 psi
Actuation Force @ 125 psi
0.38 lb
Force @ 50 psi
4 oz
Operating Temperature - Minimum
-20 Degrees F
Valve Port Connection Type
UNF
Number of Ports
3
Flow Rate - Maximum
17.3 scfm
Valve Action
Normally Closed
Operating Temperature - Maximum
160 Degrees F
Coefficient of Volume (Cv)
0.24
Fill Time
0.02 sec
Operating Pressure - Minimum
12.7 psi
Exhaust Port Connection Type
Unthreaded
For Media
Air
Actuator Type
Toggle
Return Action
Detent
Valve Port Connection Gender
Female
Exhaust Time
0.06 sec

Description

Manual Air Control Valve, Connection 10-32, Center Position Closed, Coefficient of Volume 0.24, Body Material Aluminum, Brass, Overall Length 2 5/8 in, Overall Width 2 1/8 in, Series 0
