This item is Discontinued.
This item is Discontinued.

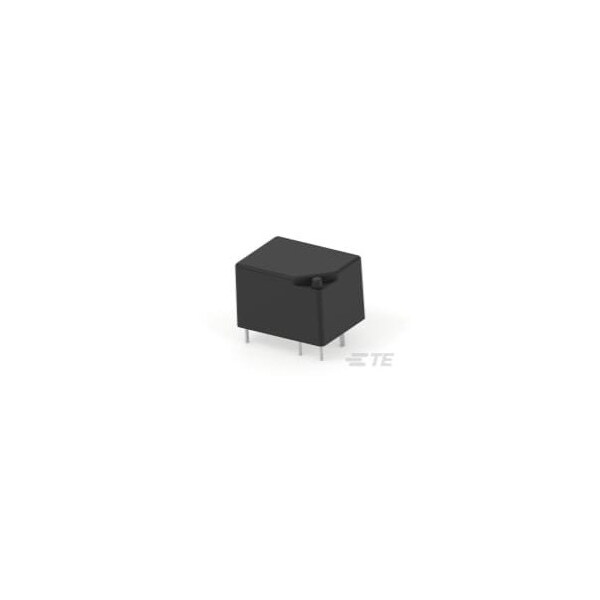

PCB, PCB Relay, 5 A, PCB (Discontinued)
Mfr #
V23148A1007A101
Zoro #
G400969126
Country of Origin Slovenia
Category Power & General Purpose Relays
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- V23148A1007A101
- Zoro #
- G400969126
- UPC #
- -
- Country of Origin
- Slovenia
Details
- Item
- PCB Relay
- Mounting Style
- PCB
- Electrical Connection
- PCB
- Coil Voltage
- 24V DC
- Current Rating
- 5 A
- Power Consumption - Relay
- 450 mW
- Contact Material
- AgNi90/10
- Number of Poles
- 1
- Contact Limiting Breaking Current
- 5A
- Dielectric Voltage
- 4000 Vrms Coil and Contact; 1000 Vrms Open Contacts
- Switching Voltage
- 400V AC
- Insulation Creepage
- 3.5 mm [ .138 in ]
- Contact Voltage Rating
- 250V AC
- Contact Limiting Short-Time Current
- 5A
- Contact Limiting Making Current
- 12A
- Contact Rating
- 5A
- Contact Limiting Continuous Current
- 5A
- Protection Category
- RTIII
- Coil Resistance
- 1280 Ω
- Operating Temp. Range
- 50 to 70°C
- Coil Type
- Monostable, DC
- Insulation Clearance
- 3.5 mm [ .138 in ]
