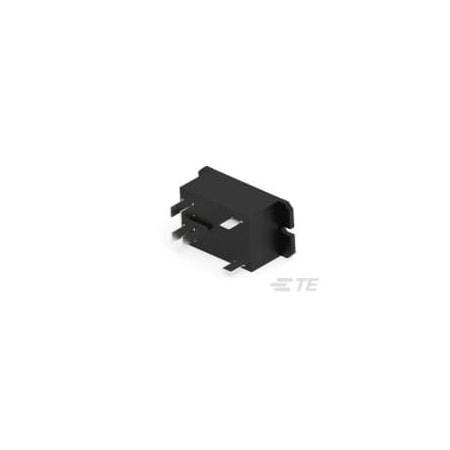

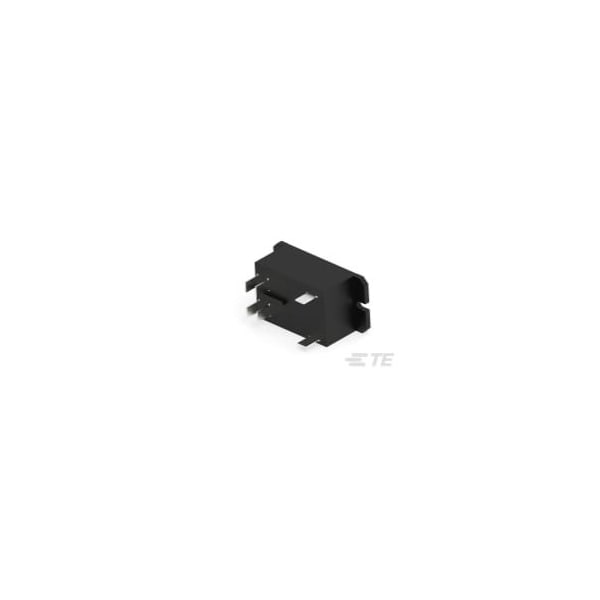

Potter-Brumfield T92P7A22-120 T92P7A22-120

T92P7A22-120 (Discontinued)

  • Mfr # T92P7A22-120
  • Zoro # G800969191
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
T92P7A22-120
Zoro #
G800969191
UPC #
-
Country of Origin
China

Dimensions

Width
34.5 mm [ 1.359 in ]
Length
52.1 mm [ 2.051 in ]
Height
26.4 mm [ 1.039 in ]

Details

Item
PCB Relay
Mounting Style
Flange Mount, Panel Mount
Electrical Connection
Quick Connect
Coil Voltage
120V AC
Contact Material
AgCdO
Coil Special Features
UL Coil Insulation Class F
Contact Switching Load (Min)
500mA @ 12V
Insulation Clearance Between Contact and Coil
8 mm [ .315 in ]
Insulation Initial Dielectric Between Coil/Contact Class
3500 to 4000 V
Contact Voltage Rating (VAC)
277
Coil Resistance (Ω)
950
Insulation Creepage Class
>8mm
Insulation Special Features
6000V Initial Surge Withstand Voltage between Contacts and Coil
Coil Magnetic System
Monostable, AC
Contact Current Class
20 to 30 A, Greater Than 16A
Contact Limiting Short-Time Current (A)
30
Insulation Creepage Between Contact and Coil
9.5 mm [ .374 in ]
Insulation Clearance Class
5 to 8mm
Insulation Initial Resistance (MΩ)
1000000
Environmental Ambient Temperature (Max)
85 °C [ 185 °F ]
Insulation Initial Dielectric Between Open Contacts (Vrms)
1500
Contact Limiting Breaking Current (A)
30
Coil Power Rating (AC) (VA)
4
Relay Type
T92 Series 2-Pole 30A PCB
Contact Current Rating (A)
30
Contact Limiting Continuous Current (A)
30
Contact Switching Voltage (Max) (VAC)
600
Contact Number of Poles
2
Insulation Initial Dielectric Between Contacts and Coil (Vrms)
4000
Contact Arrangement
2 Form A (NO)
Environmental Category of Protection
RTI
Environmental Ambient Temperature Class
70 to 85°C
Coil Power Rating Class
3 to 4 VA
Insulation Initial Dielectric Between Adjacent Contacts (Vrms)
2000
Contact Limiting Making Current (A)
30
